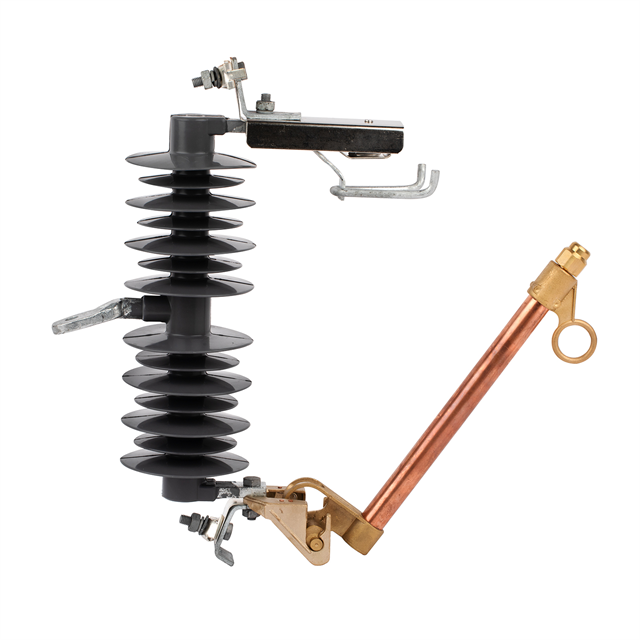

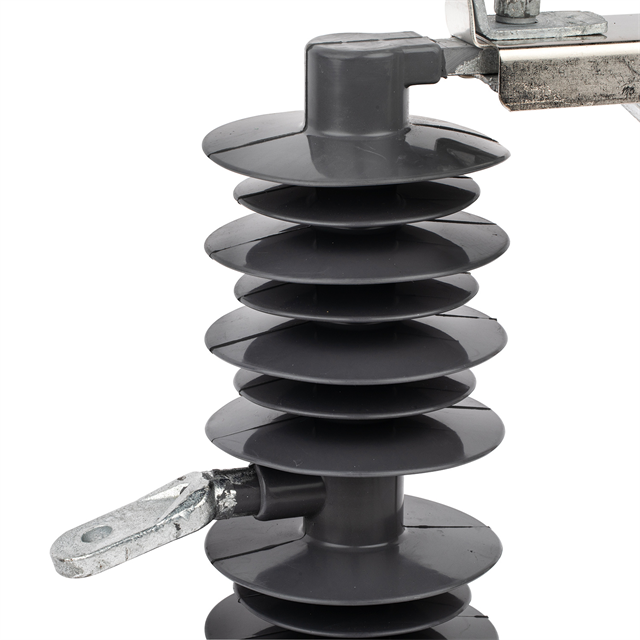

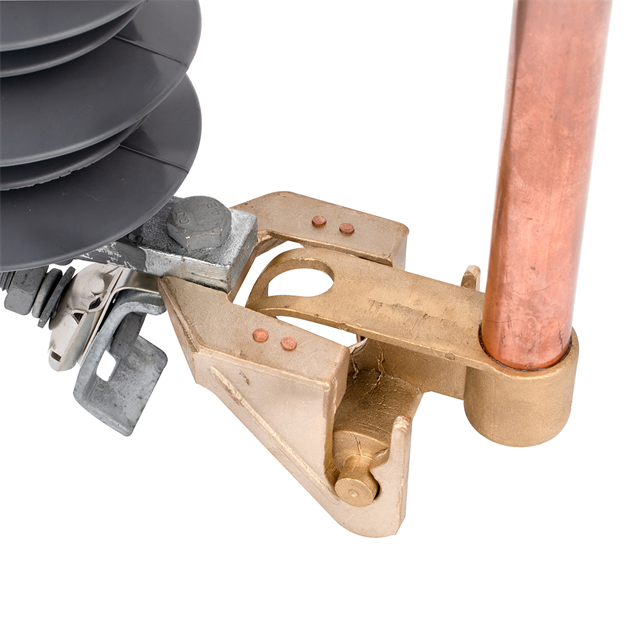

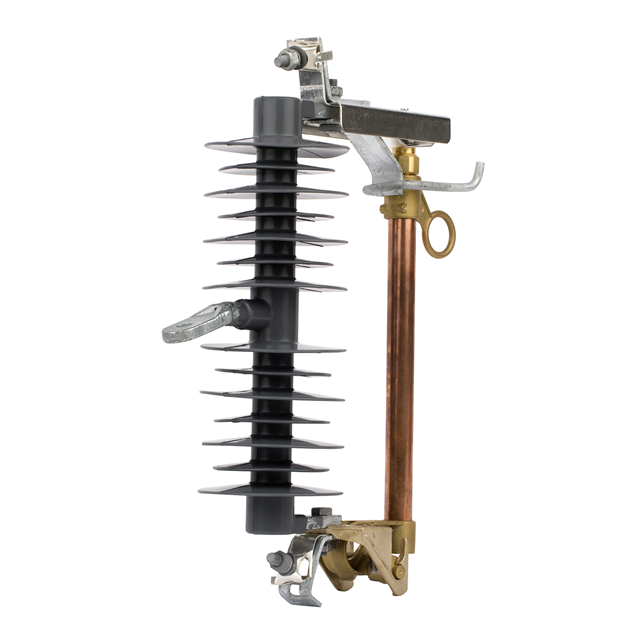

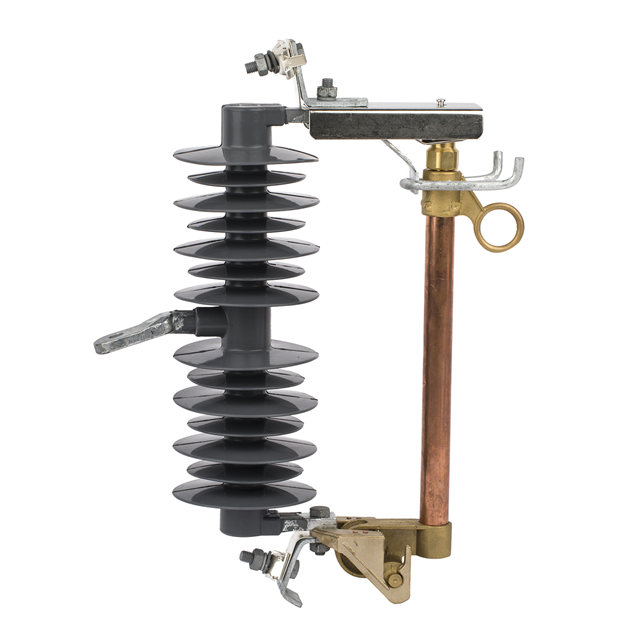

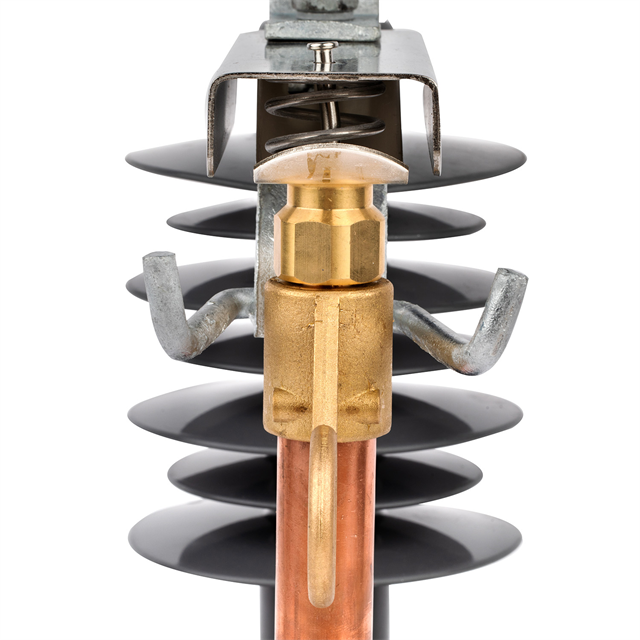

Professional Fuse Cutout for Power Line Outdoor Weatherproof Operation

Product Description

When securing overhead power lines and distribution transformers, reliability is not just a preference; it is an absolute necessity. The Professional Fuse Cutout for Power Line Outdoor Weatherproof Operation is meticulously engineered to serve as the ultimate frontline defense against overvoltage anomalies. The moment you handle this device, the substantial weight and rigid profile of its moulded case structure communicate industrial-grade durability. The exterior finish is smooth yet highly resistant to environmental degradation, designed to repel moisture, resist corrosive elements, and withstand intense ultraviolet radiation effortlessly. This tactile and visual quality assures engineers that the product will endure decades of exposure to the elements without structural compromise.

During operation, the high-speed vacuum arc-extinguishing mechanism functions with silent precision, instantly neutralizing electrical faults before they can cascade through your critical infrastructure. You will not hear the violent crack typically associated with inferior cutouts; instead, the vacuum medium extinguishes the arc swiftly and cleanly. This seamless intervention prevents catastrophic equipment failure, significantly reducing maintenance downtime and replacement costs for utility operators. By integrating this advanced cutout into your grid, you are investing in a resilient, long-lasting safeguard that maintains continuous power flow even under the most unforgiving atmospheric conditions, ultimately elevating the operational standard of your entire electrical network.

Product Specifications

Key Features & Highlights

Upgrading your electrical infrastructure requires components that deliver measurable performance improvements and long-term reliability. This fuse cutout is designed with precision-engineered features that directly translate into operational excellence, minimized grid downtime, and reduced lifecycle costs for large-scale utility networks. Every detail, from the conductive materials to the outer insulation, has been optimized for peak efficiency.

• Extended Leakage Distance: Engineered with a 350mm leakage distance to prevent surface tracking and flashovers, ensuring safety even in highly polluted or humid environments.

• High-Capacity Current Handling: Capable of managing a 100A rated current and safely interrupting up to 10KA breaking current, providing a massive safety buffer for heavy-load lines.

• Streamlined Maintenance: The fixed installation design and modular moulded case structure allow for rapid inspections and hassle-free replacements, drastically cutting down labor hours.

• Acoustic and Thermal Stability: Operates with minimal acoustic noise during arc interruption and maintains a low thermal footprint, preserving the integrity of surrounding hardware.

• Exceptional Impulse Withstand: Rated for 125 KV impulse voltage, easily absorbing severe lightning strikes and switching surges without compromising the circuit.

Core Arc-Extinguishing Technology & Safety

Electrical faults demand immediate and decisive interruption to prevent devastating fire hazards and total equipment loss. Our cutout utilizes state-of-the-art vacuum arc-extinguishing technology to provide an impenetrable safety barrier for your transformers and grid systems. Unlike traditional expulsion fuses that release hot gases, the vacuum medium confines the energy, ensuring a clean, rapid, and incredibly safe disconnection.

• Vacuum Medium Efficiency: The vacuum environment offers superior dielectric strength, extinguishing arcs in milliseconds and preventing re-ignition during severe overvoltage events.

• High-Speed Circuit Breaking: The electric-type operation mechanism ensures high-speed separation of contacts, minimizing the duration of fault currents and protecting sensitive downstream equipment.

• Targeted Overvoltage Protection (OVP): Specifically calibrated to detect and isolate voltage spikes instantly, acting as a reliable shield for expensive distribution transformers.

• Fire Hazard Elimination: By containing the arc entirely within the vacuum chamber, the risk of external sparks or fires is completely eradicated, making it ideal for dry, fire-prone geographical areas.

Outdoor Weatherproof Performance & Material Durability

Power lines operate in environments where nature is unforgiving and unpredictable. We have formulated the exterior housing and internal mechanics of this cutout to withstand extreme climatic variations. Whether your infrastructure crosses freezing tundras, coastal areas with high humidity, or scorching deserts, this device guarantees that your power delivery remains uninterrupted and secure.

• Broad Temperature Tolerance: Functions flawlessly in ambient air temperatures ranging from a freezing -30°C up to a blistering +40°C, preventing material embrittlement or thermal degradation.

• High Altitude Reliability: Standardized for operations up to 1,000 meters above sea level, with custom engineering available for projects located in higher mountainous regions.

• Aerodynamic Wind Resistance: Structurally tested to endure maximum wind speeds of up to 35m/s (hurricane-force winds), preventing mechanical dislodging during severe storms.

• Seismic Resilience: Built to withstand earthquake intensities of up to 7 degrees, ensuring the fixed installation remains intact and functional during tectonic shifts.

• Anti-Aging Polymers: The exterior sheds water effortlessly and resists UV-induced aging, maintaining its insulating properties and vibrant finish over decades of sun exposure.

International Standards & Compliance Certifications

Navigating the complex landscape of international utility procurement requires undeniable proof of quality and safety. This product is backed by rigorous testing and globally recognized certifications, drastically reducing procurement risks for cross-border engineering projects. When you specify this fuse cutout, you are backed by verified data and uncompromising manufacturing standards.

• IEC Conformance: Fully compliant with IEC291 and IEC282 technical standards, ensuring seamless integration into modern global power grids.

• ISO9001-2000 Quality Management: Manufactured under strict ISO quality control protocols, guaranteeing that every single unit performs exactly as specified.

• Standardized Trade Compliance: Classified under HS Code 8535100000, facilitating smooth, delay-free customs clearance for international shipments.

• Complete Tender Documentation: We provide a full suite of test reports, conformity declarations, and technical datasheets ready for immediate submission in competitive bidding processes.

Mechanical Strength & Superior Conductivity

The physical integrity of a fixed installation circuit breaker dictates its operational lifespan and safety profile. By combining a rigid moulded case structure with premium conductive alloys, this fuse cutout delivers exceptional mechanical strength and low thermal rise during continuous operation. The craftsmanship ensures that mechanical wear and electrical resistance are kept to an absolute minimum.

• Moulded Case Architecture: The robust outer shell provides superior impact resistance, protecting internal vacuum interrupters from accidental physical damage during transport or installation.

• Optimized Contact Materials: Engineered with high-conductivity metals that ensure a perfect electrical connection, reducing energy loss and preventing localized overheating.

• Low Temperature Rise: The efficient current path design ensures that even at the full 100A rated current, the temperature rise remains well within safe operational limits.

• Vibration Absorption: The mounting hardware and internal dampening mechanisms absorb line vibrations caused by wind or heavy traffic, preventing contact fretting over time.

Application Scenarios & System Adaptability

Versatility in deployment allows utility managers to standardize their inventory and simplify maintenance training. This 24KV device is engineered to integrate flawlessly into a multitude of high-voltage scenarios, providing consistent, top-tier protection across diverse grid architectures and varying regional power specifications.

• Overhead Distribution Lines: The perfect isolation point for sprawling overhead networks, allowing line workers to safely segment the grid for localized repairs.

• Transformer Protection Nodes: Acts as the primary safeguard for pole-mounted distribution transformers, preventing grid surges from destroying expensive conversion equipment.

• Frequency Adaptability: Designed to operate smoothly within power supply frequencies of 48Hz to 52Hz, making it suitable for grids with slight frequency fluctuations.

• Industrial Substations: Highly effective for private industrial substations that require localized overvoltage protection for heavy machinery and manufacturing plants.

Factory Strength & Comprehensive Tender Support

Selecting a manufacturing partner is just as critical as selecting the product itself. With over two decades of export excellence and a massive production footprint, we provide the logistical muscle and technical backing required for massive infrastructure rollouts. We understand the stringent demands of large-scale procurement and are fully equipped to support your project from initial design to final delivery.

• Massive Production Capacity: Capable of producing 10,000 pieces per month, ensuring that even the largest bulk orders are fulfilled strictly on schedule.

• 22 Years of Export Excellence: Decades of experience shipping to over 50 countries means we understand international logistics, packaging, and compliance better than anyone.

• Expansive Manufacturing Hub: Operating out of a 40,000-square-meter state-of-the-art facility equipped with the latest automation and testing technology.

• EPC Material Design: We boast a strong design team capable of supplying and designing LV and MV EPC materials in large lots for comprehensive project support.

• OEM & ODM Customization: Fully equipped to manufacture custom requirements, including specific anchor clamps or tailored branding, to meet your exact project specifications.

• Export Standard Packing: Every unit is secured in robust, export-grade packaging, guaranteeing that products arrive in pristine condition, ready for immediate installation.

Why Choose Us

Partnering with a seasoned supplier transforms your supply chain dynamics from a potential risk into a strategic advantage. Our commitment to engineering excellence, global reach, and customer-centric service ensures that every transaction translates into long-term operational success for your utility projects. We don't just sell components; we deliver enduring grid reliability.

• Global Footprint: Trusted by partners in over 100 countries, proving our adaptability to diverse global grid standards and climatic challenges.

• Dedicated Professional Workforce: Supported by a team of over 200 skilled staff members, from R&D engineers to meticulous quality control inspectors.

• Proven Industry Presence: A familiar and respected face at major international exhibitions (such as Canton Fair, Middle East Electricity, and FIEE Elétrica), demonstrating our commitment to industry advancement.

• End-to-End Quality Control: Every fuse cutout undergoes rigorous factory acceptance testing (FAT) to ensure zero defects before it ever leaves our facility.

• Client-Centric Collaboration: We prioritize clear communication, rapid response times, and flexible solutions to accommodate the unique challenges of your specific deployment.

Frequently Asked Questions (FAQ)

To assist your engineering and procurement teams in making an informed decision, we have compiled answers to the most critical technical and logistical questions regarding our high-voltage fuse cutouts.

• Q1: Do you provide sample units for preliminary testing and evaluation?
  A1: Yes, we are providing the samples for free to help you verify the quality and specifications. You only need to pay for the freight charge.

• Q2: Are you capable of supplying complete EPC material designs in large lots?
  A2: Absolutely. We have been supplying LV and MV EPC materials in large lots for many years, backed by our strong and experienced in-house design team.

• Q3: Is OEM customization available for specific hardware requirements?
  A3: Yes, OEM services are fully available. We can provide custom modifications, such as specific anchor clamps or tailored housing colors, based on your exact requirements.

• Q4: What level of documentation is provided for international tender submissions?
  A4: We provide a complete, whole set of documents ready for submission. This includes all necessary IEC test reports, ISO certificates, and technical datasheets required for competitive bidding.

• Q5: How does the vacuum arc-extinguishing medium enhance the lifespan of the cutout?
  A5: Unlike traditional expulsion fuses, the vacuum medium prevents internal carbonization and eliminates the release of volatile gases. This results in virtually zero contact degradation during a fault interruption, dramatically extending the mechanical and electrical lifespan of the unit.

• Q6: Can this fuse cutout be deployed in high-altitude mountainous regions?
  A6: The standard model is rated for altitudes up to 1,000 meters. However, if your installation site exceeds this altitude, our engineering team can adjust and customize the insulation and clearance parameters to ensure safe operation in thinner air.
