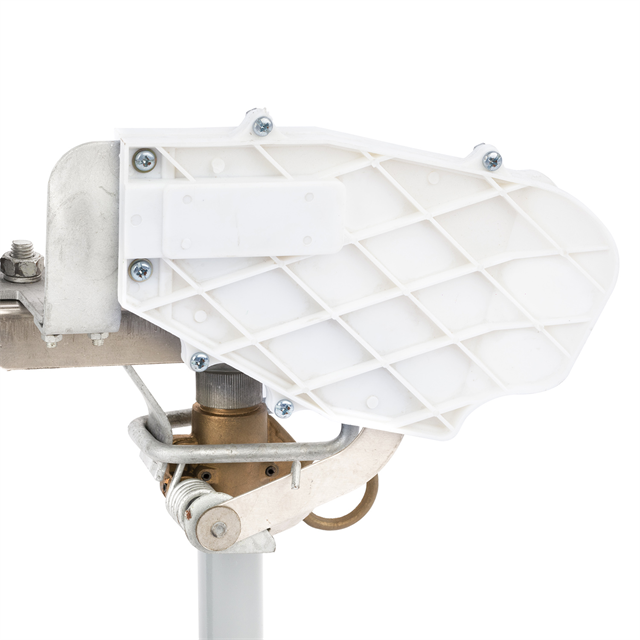

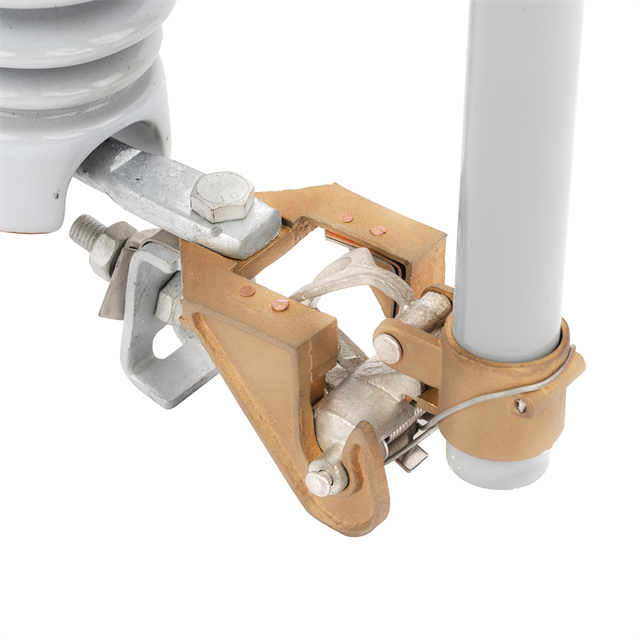

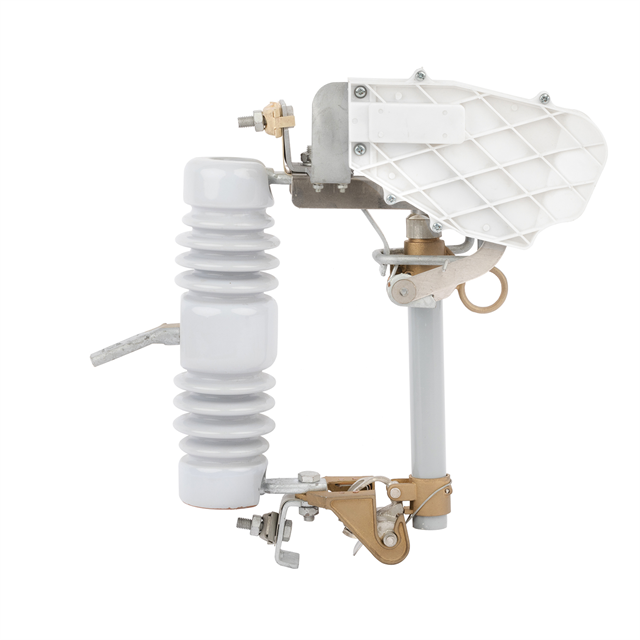

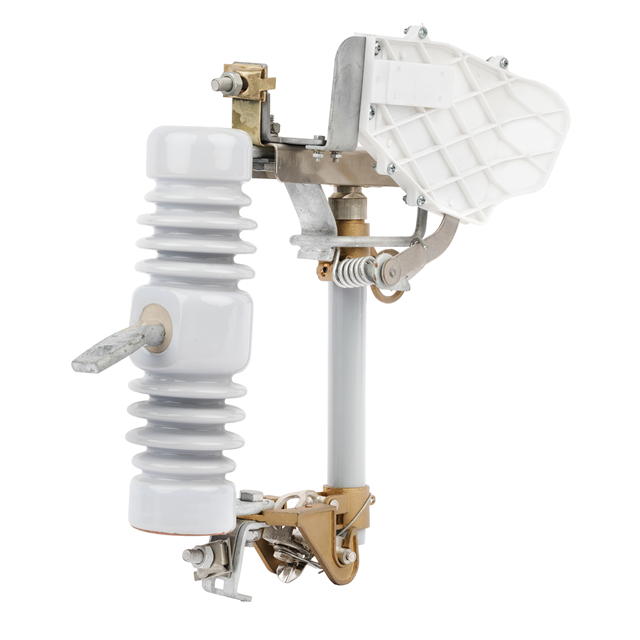

High-Capacity Drop Out Fuse Cutout RW12-12-100A

Product Description

The High-Capacity Drop Out Fuse Cutout RW12 12 100A serves as the frontline defense for your electrical distribution networks. When overhead lines face unexpected surges or severe short circuits, this precision-engineered device acts instantly, severing the connection with a distinct, audible mechanical drop. This swift action not only neutralizes the electrical threat but also provides a clear, unmistakable visual break for maintenance crews patrolling the lines. The smooth, weather-resistant exterior of the insulator sheds water effortlessly, preventing electrical tracking and ensuring long-term structural stability even in heavily polluted or coastal environments.

By integrating this advanced cutout into your infrastructure, you drastically reduce system downtime and prevent catastrophic equipment damage. The heavy-duty conductive contacts, meticulously coated for maximum conductivity, remain cool to the touch under normal load, effectively minimizing energy loss across the grid. During a fault condition, the robust arc-extinguishing chamber safely contains and dissipates the intense thermal energy, emitting a controlled downward expulsion that protects surrounding hardware. This highly reliable performance translates directly to lower maintenance costs, enhanced safety for line workers, and uninterrupted power service for end-users, ultimately safeguarding your extensive investment in the power grid.

Product Specifications

Key Features & Highlights

Upgrading your distribution network requires equipment that consistently outperforms expectations. Our drop-out fuse cutout is designed with precision to deliver unparalleled operational efficiency, safety, and economical maintenance.

• Instant Fault Isolation: Swiftly interrupts fault currents up to 12 kA, protecting downstream transformers and sensitive grid components from catastrophic damage.

• Visible Break Technology: The drop-out mechanism provides an unmistakable visual cue, allowing field technicians to quickly identify blown fuses from a distance without climbing poles.

• Economical Maintenance: Engineered for convenient operating, replacing the fuse link takes mere minutes using standard insulated hot sticks, significantly reducing labor hours.

• All-Weather Resilience: Strongly adapting to outdoor environments, it maintains structural integrity and electrical performance through scorching heat and freezing temperatures.

• Optimized Creepage: A minimum nominal creepage distance of 230 mm ensures superior insulation, preventing dangerous flashovers in high-humidity or industrial zones.

Certifications & Standards

Navigating the stringent requirements of international power grids demands equipment with proven compliance. We ensure every unit meets the highest global benchmarks for electrical safety and reliability.

• IEC Compliance: Fully conforms to IEC291 and IEC282 standards, guaranteeing seamless integration into standardized global electrical networks.

• Rigorous Third-Party Testing: Validated by authoritative laboratories, ensuring the breaking capacity and impulse voltage withstand the most demanding grid conditions.

• ISO Quality Management: Manufactured under strict ISO 9001:2015 protocols, ensuring zero defects from raw material selection to final assembly.

• Tender-Ready Documentation: We supply complete, verified test reports and compliance certificates, accelerating your project approval and procurement processes.

Electrical Performance

At the heart of grid stability is uncompromising electrical performance. This cutout is engineered to handle massive energy loads while remaining highly sensitive to fault conditions.

• High Breaking Capacity: Capable of safely interrupting fault currents up to 12 kA, preventing cascading network failures during severe short circuits.

• Superior Impulse Withstand: Features a 110 kV Basic Insulation Level (BIL), offering robust protection against lightning strikes and severe switching surges.

• Stable Current Transmission: The 100A rated current capacity ensures continuous, low-resistance power flow without overheating the contact points.

• Wet Withstand Reliability: Achieves a 40 kV Power Frequency wet withstand voltage for 1 minute, ensuring consistent insulation even during torrential downpours.

• Frequency Adaptability: Operates flawlessly within an A.C. power supply frequency range of not less than 48Hz and not exceeding 52Hz, accommodating minor grid fluctuations.

Materials & Construction

The physical longevity of overhead protection gear relies entirely on the quality of its components. We source and process premium materials to construct a cutout that defies aging and mechanical wear.

• Heavy-Duty Insulators: Constructed from high-strength materials designed to resist UV degradation and mechanical stress over a lifespan exceeding two decades.

• Arc-Quenching Fuse Tubes: Built with epoxy fiberglass and an anti-UV coating, the tube withstands the immense internal pressure of arc expulsion without rupturing.

• High-Conductivity Contacts: Precision-cast conductive components ensure a secure, low-resistance connection, eliminating the risk of micro-arcing and thermal degradation.

• Corrosion-Resistant Hardware: All mounting brackets and exposed metal parts are heavily galvanized to withstand corrosive industrial atmospheres and coastal salt spray.

Environmental Adaptability & Safety

Power lines traverse some of the most unforgiving landscapes on earth. This cutout is specifically engineered to maintain operational integrity regardless of the environmental challenges it faces.

• Extreme Temperature Tolerance: Functions flawlessly in ambient air temperatures ranging from a freezing -30 degree to a blistering +40 degree.

• High-Altitude Ready: Standard operation up to 1,000 meters above sea level, with customizable adjustments available for mountainous installations exceeding 1,000m.

• Seismic and Wind Resistance: Structurally sound to withstand earthquake intensities not exceeding 7 degrees and maximum wind speeds not exceeding 35m/s.

• Hot-Stick Compatible: The ergonomically designed pulling eye allows line workers to safely open and close the circuit from the ground using standard insulated tools.

• Controlled Arc Exhaust: The downward-venting design directs expelled gases safely away from surrounding electrical equipment and personnel.

Application Scenarios

Versatility is key for large-scale grid deployments. This device is the ideal protective solution for a wide array of medium-voltage applications.

• Distribution Transformers: Acts as the primary safeguard for pole-mounted transformers, isolating them instantly during internal faults.

• Overhead Feeder Lines: Perfect for sectionalizing long rural or suburban distribution lines, minimizing the impact radius of localized short circuits.

• Capacitor Banks: Provides reliable switching and short-circuit protection for grid-enhancing capacitor installations.

• Remote Grid Extensions: The low-maintenance design makes it highly suitable for isolated mountainous or forested power networks where frequent servicing is impractical.

Supply Chain & Customization

Securing materials for large infrastructure projects requires a partner with massive capacity and flexible manufacturing capabilities. We streamline your procurement process from design to delivery.

• Comprehensive Customization: We provide the anchor clamp and other hardware as custom requirements to align perfectly with your specific engineering blueprints.

• EPC Project Expertise: We are supplying for LV and MV EPC material in lot many years, and have a strong design team ready to support complex engineering contracts.

• Tender Submission Support: Whole set documents ready for submit, providing you with the exact technical drawings and compliance certificates needed to win utility bids.

• High-Volume Production: Our expansive manufacturing facility and automated production lines ensure rapid fulfillment of bulk orders without compromising quality.

• Global Logistics: We guarantee secure packaging in reinforced crates for safe ocean and air transit, ensuring products arrive in pristine condition.

Quality Control & After-sales

Mitigating risk is our top priority. We implement obsessive quality control measures to ensure every unit performs perfectly upon installation.

• 100% Factory Testing: Every single cutout undergoes rigorous pre-shipment inspections, including visual checks, dimensional verification, and mechanical operation tests.

• Free Evaluation Samples: We are providing the samples for free (buyer needs to pay for the freight charge) so your engineering team can physically verify the quality.

• Traceable Manufacturing: Each batch is meticulously documented, allowing for complete traceability of raw materials and assembly processes.

• Dedicated Technical Support: Our experienced engineering team is available to assist with installation guidance, troubleshooting, and long-term maintenance protocols.

Why Choose Us

Partnering with the right manufacturer transforms your supply chain efficiency. We bring decades of specialized expertise to your power distribution projects.

• Decades of Export Experience: With over 22 years of dedicated international trade experience, we understand the nuances of global customs, shipping, and grid standards.

• Massive Infrastructure: Operating out of a 40,000m² state-of-the-art factory equipped with the latest testing and molding technology.

• Skilled Workforce: Backed by a dedicated team of over 200 staff members, including elite electrical engineers and quality assurance specialists.

• Global Footprint: Our products continuously protect power grids in more than 50 exporting countries, earning the trust of major utility providers worldwide.

• Customer-Centric Approach: From the initial inquiry to post-installation support, our goal is to bring a complete customer satisfaction experience to every project.

FAQ

Q1: Samples providing?

A1: We are providing the samples for free, but need pay for the freight charge.

Q2: EPC material design and provide in lot?

A2: Yes, we are supplying for LV and MV EPC material in lot many years, and have strong design team.

Q3: OEM available?

A3: Yes, we are providing the anchor clamp as custom requirement.

Q4: Complete documents for tender?

A4: Yes, whole set documents ready for submit.

Q5: What is the maximum altitude for the standard RW12-12-100A model?

A5: The standard model is designed for altitudes not exceeding 1,000 meters above sea level. However, if your project requires installation at higher altitudes, our engineering team can adjust the design to meet your specific environmental demands.
