Zhejiang Zhongneng Electrical Co., Ltd. supplies insulator products for MV and HV electrical insulation in substations, overhead lines, distribution networks, transmission lines, and electrified railway contact networks. As a Chinese manufacturer and supplier of medium-voltage and high-voltage electrical products, we help buyers match insulation options to conductor support, phase isolation, outdoor service conditions, and power-system equipment. Send us your voltage class, application drawings, installation environment, and quantity requirements. Our team will recommend a suitable product for your project.
High voltage insulator products are essential parts of electrical power systems. They support conductors mechanically while preventing unwanted current flow to poles, towers, structures, or grounded equipment. In MV and HV networks, the right electrical insulation product helps maintain clearance, stable operation, and long-term outdoor reliability.
Zhongneng supplies composite, porcelain, suspension, post, composite suspension, and composite strain insulator options for different installation positions. These product families serve overhead distribution lines, 33–220kV substation equipment, 110–220kV transmission lines, and railway contact network applications. Each selection should match the required insulation performance, mechanical support, and project design. For broader project matching across insulation, protection, switching, and circuit breaking equipment, buyers can review our MV and HV power equipment solutions.
For quick selection, please provide the rated voltage, system voltage, installation type, mechanical load, creepage distance, end fittings, and applicable standard or drawing. Our team can help confirm whether a composite, porcelain, suspension, post, or strain design is better suited to your operating conditions.
The Insulator category includes material-based and function-based product types. This helps engineers and procurement teams match products with line structures, substation layouts, and environmental conditions. Composite and porcelain designs are chosen according to weight preference, pollution level, mechanical duty, mounting requirements, and utility standards. Suspension, post, and strain configurations are selected by installation position and conductor load.
The overview below helps buyers compare common product types before requesting drawings, datasheets, or a quotation. Final model selection should be confirmed by voltage level, mechanical requirements, creepage distance, fitting dimensions, and site environment.
| Insulator Type | Short Description | Main Use | Typical Selection Focus |
|---|---|---|---|
| Composite Insulator | Lightweight electrical insulator with polymer housing for outdoor line and distribution applications. | Overhead lines, distribution networks, power-line insulation positions. | Voltage class, creepage distance, pollution performance, end fittings, mechanical load. |
| Porcelain Insulator | Traditional ceramic insulation product valued for rigidity, durability, and stable mechanical support. | Substations, distribution lines, outdoor electrical equipment, traditional grid installations. | Mechanical strength, installation dimensions, insulation distance, surface condition, mounting design. |
| Suspension Insulator | Used to suspend conductors and insulate them from support structures. | Overhead power lines, transmission lines, conductor suspension positions. | String configuration, voltage level, conductor load, arc distance, environmental exposure. |
| Post Insulator | Rigid support product for busbars, conductors, and live parts in equipment installations. | Substations, switchgear, disconnector switch assemblies, outdoor power equipment. | Cantilever strength, insulation height, mounting holes, busbar support, creepage distance. |
| Composite Suspension and Strain Insulator | Composite line product for suspension, tension, angle, and dead-end positions. | Distribution lines, transmission lines, pole and tower sections requiring tension support. | Rated mechanical load, conductor tension, fittings, tower or pole structure, weather resistance. |
A composite insulator is commonly selected for overhead power lines and distribution systems. It is useful where lower weight, outdoor weather resistance, and convenient installation are important. Its polymer housing supports pollution performance and hydrophobic surface behavior. This helps the product adapt to moisture, dust, industrial contamination, or coastal exposure.
Compared with heavier traditional designs, composite products can simplify handling and installation in pole-line and tower-line projects. Buyers should confirm voltage class, creepage distance, end fitting type, mechanical load, and required standard or drawing before ordering.
A porcelain insulator remains a widely used choice for power networks that prefer traditional ceramic insulation. It provides stable rigidity and long-term mechanical support. Porcelain designs are often considered for substations, distribution lines, and outdoor electrical equipment. They are also used where established utility practices and mounting compatibility are important.
When selecting a porcelain electrical insulator, engineers should review insulation distance, mechanical strength, mounting hole dimensions, surface condition, and structural compatibility. These checks help ensure proper electrical performance and equipment assembly.
A suspension insulator is designed to suspend conductors while isolating them from poles, towers, or grounded support structures. It is commonly used in overhead power line and transmission line systems. Conductor weight, span length, wind load, and voltage level all affect the final string configuration.
Selection depends on rated voltage, mechanical load, creepage distance, string arrangement, conductor tension, and environmental conditions. For transmission and distribution projects, drawings and line design information help us confirm the suitable model faster.

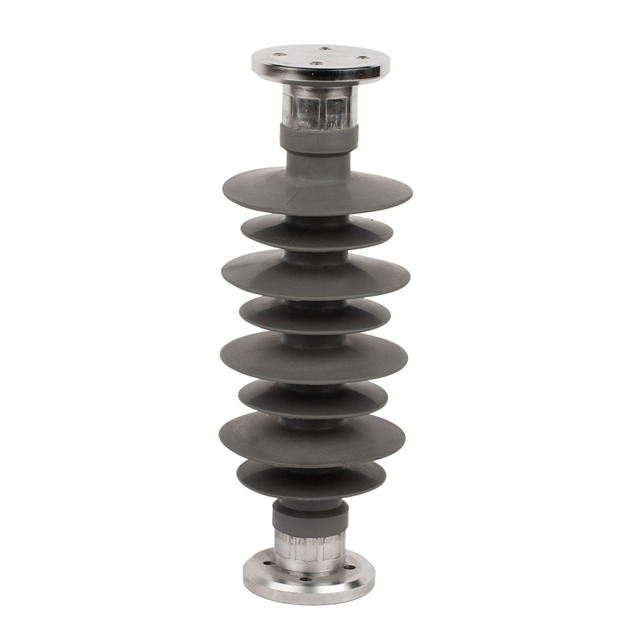

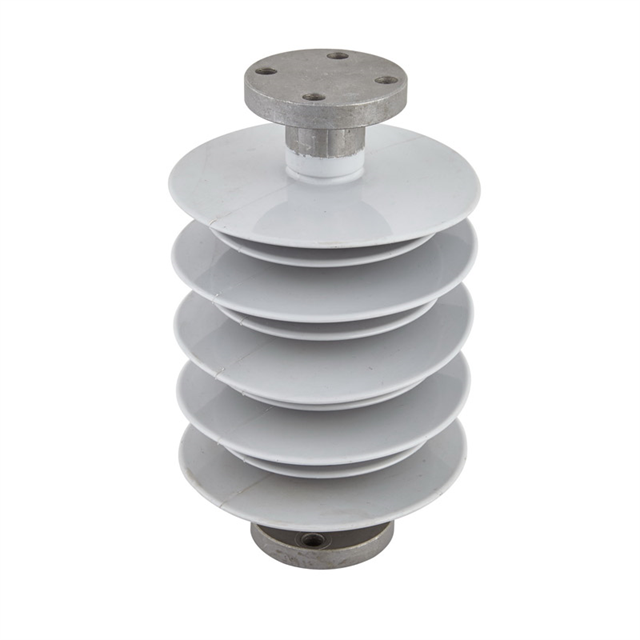

A post insulator is used where energized parts must be supported in a fixed position. It provides insulation distance and mechanical stability for equipment installations. Typical applications include busbar support, outdoor substations, switchgear, disconnector switch assemblies, and other MV or HV power equipment.
Important selection factors include cantilever strength, mounting dimensions, insulation height, creepage distance, and compatibility with connected conductors or equipment. In substation projects, selection should also consider layout drawings, equipment arrangement, and required clearances.
Composite suspension and strain insulators are used where conductors must be supported, tensioned, or anchored. These products suit suspension points, angle positions, dead-end structures, and other overhead line locations. They are selected where insulation performance and mechanical strength are both required.
For distribution and transmission line applications, buyers should confirm conductor tension, rated mechanical load, tower or pole structure, end fitting type, and environmental exposure. Correct selection improves installation compatibility and supports stable outdoor operation.
Zhejiang Zhongneng Electrical Co., Ltd. focuses on medium-voltage and high-voltage electrical products for power-system applications. Our portfolio covers insulation, protection, switching, and circuit-breaking equipment. This helps B2B buyers source related power-line and substation components from a supplier familiar with grid applications, rural distribution networks, overhead lines, transmission projects, and railway contact networks.
Zhongneng is positioned as one of China’s leading high-tech enterprises in MV and HV application equipment. The company is also stated as a qualified supplier of State Grid and China Southern Power Grid. We state strict testing procedures aligned with ISO9001 quality management. CE safety certification production is also stated where applicable to EU-related requirements.
Specialized focus on MV and HV power equipment applications.
Composite and porcelain insulator options for different line and equipment requirements.
Product coverage for substations, overhead power lines, distribution lines, transmission lines, and railway contact networks.
Broad sourcing support across related categories such as arresters, fuse cutouts, disconnector switches, and vacuum circuit breakers.
Export-oriented communication supported by multilingual website presentation and international exhibition participation.
Insulator selection depends on the installation position and the electrical and mechanical duties required. A power line product must withstand outdoor exposure and conductor load. A substation product may need to support busbars, switching equipment, or live components with fixed clearances.
Zhongneng supplies insulation products for multiple MV and HV use cases. These include high voltage substations, overhead distribution lines, transmission lines, and electrified railway contact networks. Buyers are encouraged to provide drawings, rated voltage, installation position, mechanical load, pollution level, and environmental conditions. With this information, our team can recommend the correct electrical insulator type.
| Application | Suitable Insulator Types | Selection Considerations |
|---|---|---|
| 33–220kV Substations | Post insulator, porcelain insulator, composite insulator depending on equipment design. | Mechanical support, insulation distance, creepage distance, mounting dimensions, equipment layout. |
| 11–36kV Overhead Distribution Lines | Composite insulator, porcelain insulator, suspension insulator, strain insulator. | Weather resistance, pollution level, pole structure, fitting compatibility, conductor load. |
| 110–220kV Transmission Lines | Suspension insulator, composite suspension insulator, composite strain insulator. | Voltage rating, mechanical load, tower structure, conductor tension, arc distance, outdoor exposure. |
| Electrified Railway Contact Networks | Project-specific composite or porcelain insulator types selected by drawings and standards. | Mechanical support, insulation reliability, vibration and environmental conditions, installation drawings. |
Substation insulators support and isolate busbars, live conductors, disconnector switch assemblies, switchgear components, and outdoor high-voltage equipment. In these applications, stable mechanical support is as important as electrical insulation. Live parts must remain correctly positioned under operating and environmental stresses.
Key selection points include mechanical strength, insulation distance, creepage distance, mounting hole arrangement, equipment layout, and conductor or device compatibility. Zhongneng’s wider MV and HV range can support coordinated substation sourcing. This is useful when insulation products are required together with protection and switching equipment.
Overhead line insulators for 11–36kV distribution networks are used in rural grids, pole-mounted networks, and distribution lines. These locations may face rain, sunlight, dust, wind, and pollution. Composite, porcelain, suspension, and strain designs may be selected according to line structure and conductor support needs.
For these projects, buyers should confirm voltage class, installation position, conductor load, end fittings, and environmental conditions. Coastal or industrial pollution should also be noted. Proper fitting compatibility is important because line hardware, pole structures, and conductor arrangements must match the selected design.
Transmission line insulators for 110–220kV projects must be selected with attention to voltage rating, mechanical load, arc distance, creepage distance, and outdoor performance. These installations often involve higher conductor tension, larger tower structures, and demanding environmental exposure.
Composite suspension and strain designs are frequently considered for suspension, angle, and dead-end positions. Other configurations may be used according to project standards and tower design. Providing line drawings and conductor tension requirements helps speed up accurate model confirmation.
Electrified railway contact networks require insulation products that provide reliable electrical isolation and mechanical support under project-specific conditions. They may be used in support positions where vibration, outdoor exposure, and system layout must be considered together.
Railway projects can have strict technical and documentation requirements. Buyers should confirm project standards, installation drawings, operating environment, mounting hardware, and required product documents before selection. Zhongneng can support technical communication for matching suitable products to the required railway contact network application.
Selecting the right Insulator begins with the electrical system, installation position, and operating environment. A product for a pole-mounted distribution line may not suit a substation busbar support. It may also be unsuitable for a high-tension transmission tower. Procurement teams should confirm electrical and mechanical parameters before requesting a quotation.
The checklist below helps engineers, contractors, and purchasing teams prepare the key details required for accurate product recommendation. If drawings or installation photos are available, they can help confirm end fittings, mounting dimensions, and replacement compatibility.
| Parameter | Why It Matters | Information to Provide |
|---|---|---|
| Rated Voltage and System Voltage | Determines the required electrical insulation level and product category. | Nominal voltage, highest system voltage, application voltage class. |
| Insulator Structure | Different structures are used for support, suspension, strain, or equipment mounting. | Suspension, post, strain, line post, composite suspension, or other required type. |
| Material Preference | Composite and porcelain products offer different handling, rigidity, and pollution-performance characteristics. | Composite insulator, porcelain insulator, or open to recommendation. |
| Mechanical Load | Ensures the product can support conductor tension, cantilever load, or equipment forces. | Rated mechanical load, cantilever strength, conductor tension, or project requirement. |
| Creepage Distance and Pollution Level | Important for outdoor reliability in polluted, coastal, humid, or industrial environments. | Required creepage distance, pollution level, site environment description. |
| Installation Environment | Outdoor conditions affect material selection and insulation design. | Altitude, temperature, humidity, UV exposure, coastal area, industrial pollution, or special site notes. |
| Fittings and Mounting Dimensions | Ensures compatibility with poles, towers, busbars, conductors, or equipment assemblies. | End fittings, mounting holes, connection hardware, layout drawings, replacement sample photos. |
| Standards and Drawings | Project standards and customer drawings guide product verification and documentation. | Applicable standard, customer drawing, utility specification, test document requirements. |
Composite and porcelain insulators are both widely used in power systems. They are often selected for different project priorities. Composite designs are commonly preferred where lighter weight, easier handling, and pollution resistance are important. Porcelain designs are often selected for traditional system compatibility, rigidity, and established grid use.
The best choice depends on project environment, mechanical load, utility preference, installation method, and maintenance considerations. Buyers should avoid selecting only by material name. Instead, confirm voltage level, mounting arrangement, creepage distance, and fitting compatibility.
| Comparison Item | Composite Insulator | Porcelain Insulator |
|---|---|---|
| Weight and Handling | Generally lighter and easier to handle during line installation. | Heavier ceramic construction, often requiring more careful handling. |
| Pollution Performance | Polymer housing is often selected for hydrophobic behavior and polluted environments. | Performance depends on design, surface condition, creepage distance, and maintenance practices. |
| Mechanical Character | Suitable for many line applications when matched with the correct load rating and fittings. | Rigid ceramic body commonly used where traditional mechanical support is preferred. |
| Typical Applications | Overhead distribution lines, transmission line sections, suspension and strain positions. | Substations, distribution lines, equipment support, traditional utility installations. |
| Selection Advice | Choose based on pollution level, weight preference, installation convenience, mechanical load, and fittings. | Choose based on utility practice, rigidity, mounting compatibility, insulation distance, and equipment design. |
For MV and HV insulator supply, consistent quality control is critical. Insulation products must perform electrical and mechanical functions in real operating environments. Zhejiang Zhongneng states strict testing procedures aligned with ISO9001 quality management. CE safety certification production is also stated where applicable to EU-related requirements.
Quality confirmation for a specific product may include drawing verification, dimensional checks, visual inspection, mechanical-performance considerations, insulation-performance verification, packaging checks, and document review. Buyers can request available test reports, drawings, and technical documents according to the selected model and project requirements.
Dimensional inspection to confirm key mounting and fitting dimensions.
Visual inspection for surface condition, workmanship, and product appearance.
Mechanical-performance confirmation according to the required product type and application.
Insulation-performance document support based on specific product requirements.
Packaging checks to support safe handling and export shipment preparation.
For project-based procurement, we recommend confirming documentation requirements early. This is especially important for utility, substation, transmission, railway, or export projects with defined approval procedures.
Zhongneng supports buyers with product matching, technical confirmation, sample or batch inquiry communication, and export-oriented coordination for MV and HV electrical projects. Customization discussions may involve voltage class, creepage distance, end fittings, color requirements, customer drawings, labels, packaging preferences, and project documentation. The final scope depends on the specific product and application.
As an export-oriented electrical product supplier, Zhongneng presents multilingual website support. The company has also participated in international exhibitions such as Canton Fair, Elektro 2023, and Middle East Electricity. This international market outreach helps overseas buyers communicate requirements more efficiently.
| Custom or Export Requirement | Details to Share | How It Helps Selection |
|---|---|---|
| Voltage Class | Rated voltage, system voltage, and application voltage level. | Confirms the suitable electrical insulation category. |
| Creepage Distance | Required creepage distance or pollution-level requirement. | Supports outdoor performance matching in polluted or humid environments. |
| End Fittings and Mounting | Fitting type, hole spacing, conductor hardware, tower or pole connection. | Ensures installation compatibility and reduces replacement risk. |
| Drawings and Standards | Customer drawings, utility specifications, applicable project standards. | Supports technical verification and document preparation. |
| Packaging and Labels | Export packaging notes, label requirements, project identification requirements. | Helps organize shipment and project documentation communication. |
If you need help reviewing installation conditions or matching insulation products with related power-system equipment, send us your project details through the custom Insulator inquiry form. Please include drawings or technical specifications when available.
To request an Insulator quotation, please send the rated voltage, product type, material preference, required standard, quantity, drawings, mechanical load, creepage distance, and application environment. Our team can recommend suitable composite or porcelain options for substations, overhead power lines, distribution lines, transmission lines, and electrified railway contact networks.
As an Insulator supplier and manufacturer of MV and HV electrical products, Zhejiang Zhongneng Electrical Co., Ltd. supports buyers with technical communication, product matching, and quotation preparation. For datasheet requests, quotation support, or technical consultation, contact us through the Insulator quotation contact page. Attach drawings, photos, or project specifications to help us confirm the correct model.
Rated voltage and system voltage
Insulator type: composite, porcelain, suspension, post, strain, or project-specific structure
Mechanical load or cantilever strength requirement
Creepage distance and pollution level
End fittings, mounting dimensions, and connection hardware
Quantity, destination market, and required technical documents
Application: substation, overhead line, distribution line, transmission line, or railway contact network
For complete power-system sourcing, Zhongneng also supplies related MV and HV categories. These include arrester, fuse cutout, disconnector switch, and vacuum circuit breaker products. This allows buyers to coordinate insulation, protection, switching, and circuit-breaking requirements within one project communication process.
We supply composite insulators, porcelain insulators, suspension insulators, post insulators, composite suspension insulators, and composite strain insulators for MV and HV power applications. Our team helps buyers select products for substations, overhead distribution lines, transmission lines, and electrified railway contact networks. Selection is based on project voltage, mechanical load, installation position, and operating conditions.
Composite insulators are often preferred for lighter weight, easier handling, and pollution resistance. Porcelain insulators are widely used for traditional durability, rigidity, and system compatibility. We recommend confirming voltage level, mechanical load, installation environment, utility preference, mounting dimensions, and project standards before choosing a material.
Please provide rated voltage, system voltage, product type, material preference, mechanical load, creepage distance, standard or drawing, quantity, and application environment. Photos, line drawings, substation layout drawings, or existing fitting samples can help our engineers confirm the correct model faster.
Yes. Zhongneng’s product range can be selected for substations, overhead distribution lines, transmission lines, and electrified railway contact networks. The final choice depends on voltage, mechanical load, creepage distance, fittings, and installation conditions.
Quality and technical documents can be requested for specific products. Zhongneng states strict testing procedures aligned with ISO9001 quality management. CE safety certification production is also stated where applicable. Buyers may request available drawings, test reports, and technical information according to the selected model and project requirements.
