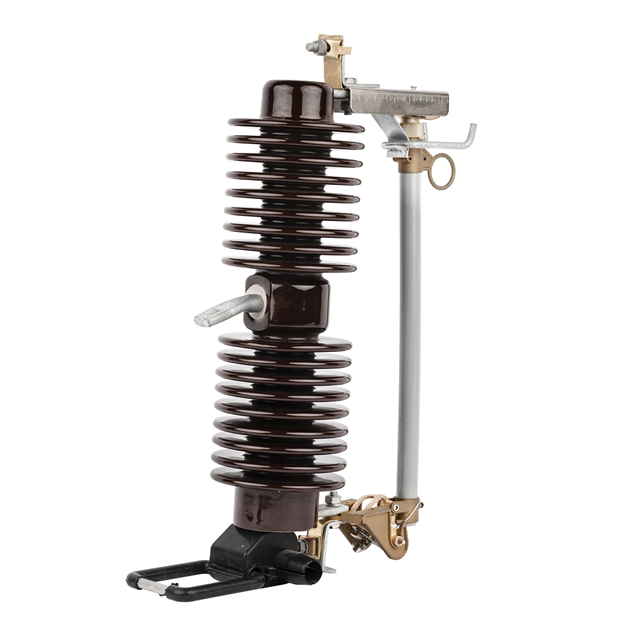

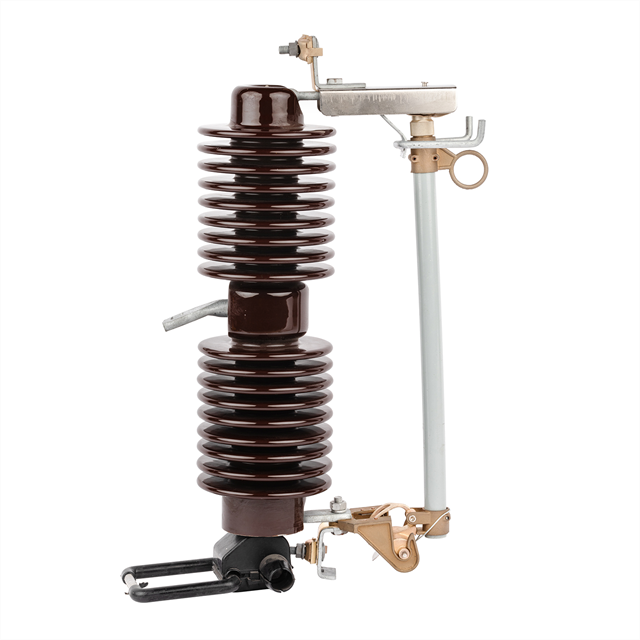

Good Price Cutout Fuse Kit for High-Voltage Power Grid Installation

Condition of Use:

1. The ambient air temperatures within the range of -30 degreeto +40 degree;

2. The altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )

3. Frequency of the A. C. Power supply not less than 48Hz and not exceeding 52Hz;

4. Earthquake intensity not exceeding 7 degrees;

5. Maximum wind speed not exceeding 35m/s.

Technical Standard:

The technical performance of the products is in confirmed to IEC291, 282.

Product Description

Securing a high-voltage power grid demands components that do more than just function; they must endure. This High Voltage Cutout Fuse Kit is meticulously crafted to serve as the frontline defense for electrical distribution networks. When handling the physical unit, the dense, non-porous surface of the insulating body immediately conveys a sense of industrial-grade durability. The metallic contact points are precision-machined, offering a smooth, friction-resistant engagement that ensures a secure mechanical lock and optimal electrical conductivity under continuous load.

By integrating this cutout fuse into your network, you are actively preventing localized electrical faults from cascading into widespread outages. The swift mechanical drop-out action produces a definitive, crisp acoustic feedback during operation, signaling a successful circuit break. This immediate physical separation not only protects expensive downstream transformers and capacitors but also provides maintenance crews with a clear, visual indication of the fault location. The heavy-duty galvanized hardware resists the corrosive bite of humid, saline, or industrial atmospheres, ensuring that the structural integrity remains uncompromised over decades of exposure. Ultimately, this component reduces emergency dispatch costs, minimizes grid downtime, and elevates the overall reliability of your infrastructure.

Product Specifications

Key Features & Highlights

Deploying reliable infrastructure requires components that excel in both design and execution. Our cutout fuse kit is engineered to deliver unparalleled protection, reducing the frequency of maintenance cycles and safeguarding critical grid assets.

• Precision Fault Isolation: The meticulously calibrated fuse element melts instantaneously under overcurrent conditions, triggering a rapid drop-out mechanism that severs the connection and prevents equipment damage.

• Corrosion-Resistant Hardware: All metallic components undergo advanced galvanization, offering a smooth, resilient finish that repels moisture and prevents rust, even in highly corrosive coastal or industrial environments.

• Visual Fault Identification: The gravity-driven drop-out action leaves the fuse tube hanging in an unmistakable open position, allowing patrol teams to visually identify blown fuses from a distance, drastically cutting down troubleshooting time.

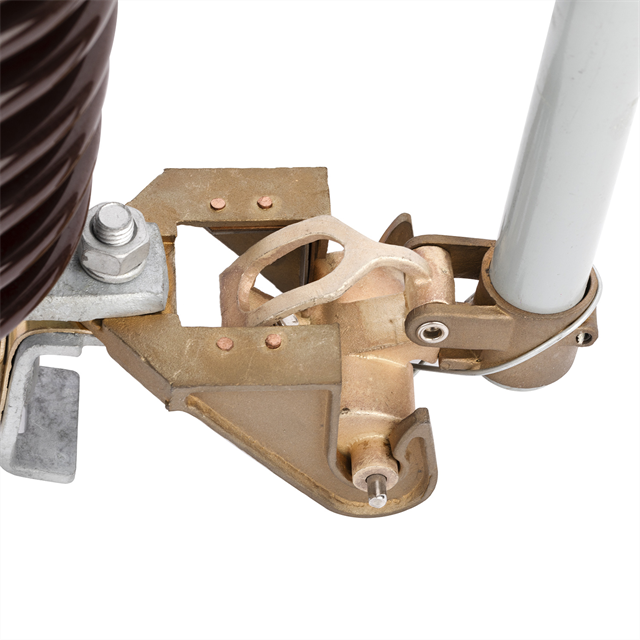

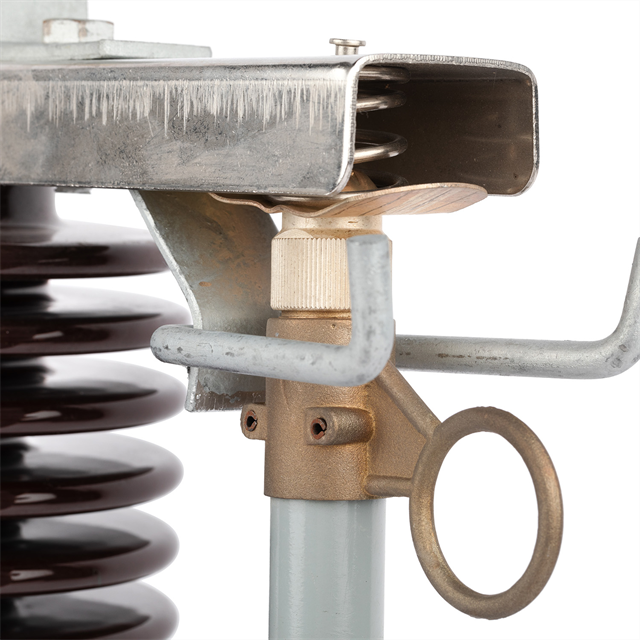

• Secure Mechanical Latching: The upper and lower contact assemblies are designed with high-tension springs, providing a firm, tactile snap when engaged. This prevents accidental dislodging caused by environmental vibrations or thermal expansion.

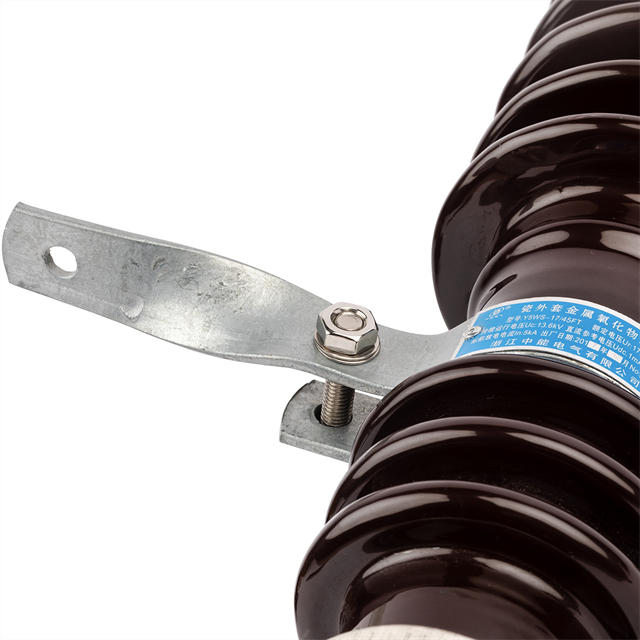

• Seamless Integration: Designed with standardized mounting brackets, this kit aligns perfectly with existing crossarms and pole structures, enabling rapid installation by field technicians without the need for specialized modification tools.

Comprehensive Project Capabilities

Executing large-scale electrical infrastructure projects requires more than just premium hardware; it demands a comprehensive approach to compliance, environmental resilience, and supply chain stability. We provide a full-spectrum solution tailored for complex engineering demands.

• Electrical Performance & Compliance: Engineered to strictly adhere to IEC291 and IEC282 international standards, this unit boasts an 8KA breaking current and a 170KV impulse voltage capacity. These robust electrical parameters guarantee that high-voltage grids can safely and swiftly disconnect faults during short circuits or severe overloads, making it a primary choice for grid constructors and municipal power authorities.

• Environmental Adaptability: Built for the harshest outdoor environments, the system operates flawlessly across a wide temperature spectrum from -30°C to +40°C. It is structurally reinforced to withstand seismic activities up to an intensity of 7 degrees and gale-force winds up to 35m/s. Furthermore, customized adjustments are readily available for installations at altitudes exceeding 1,000 meters, ensuring global geographical compatibility.

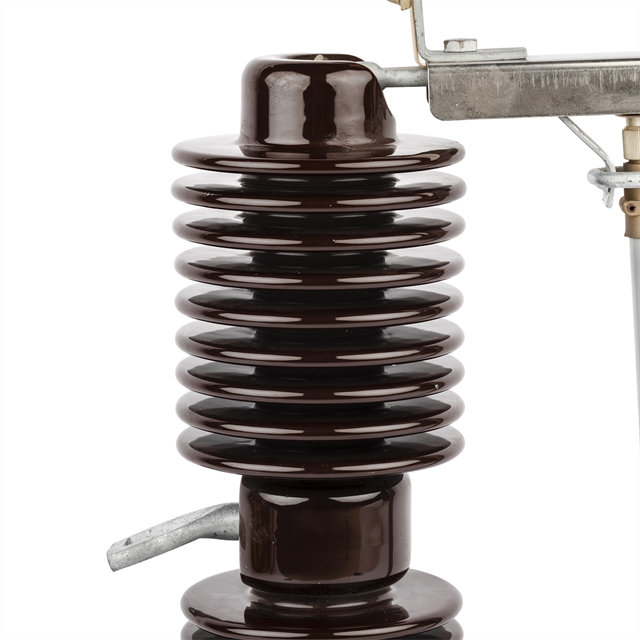

• Material & Anti-pollution Design: The structural integrity relies on advanced insulating materials and anti-corrosive conductive contacts. Featuring an exceptional leakage distance of 7000mm, the design actively mitigates the risk of pollution flashovers caused by industrial dust, heavy rain, or coastal salt fog, thereby significantly driving down long-term maintenance expenditures.

• Tender & Documentation Support: Navigating the procurement processes of major utility projects is complex. We provide complete documents for tender, encompassing all necessary technical drawings, test reports, and compliance certificates. This extensive documentation empowers contractors and project developers to seamlessly participate in and win national grid bidding processes.

• EPC Project & Design Capability: Operating as a full-suite solution provider, our strong in-house design team supports medium and low voltage (LV & MV) EPC projects. We offer comprehensive material packaging design and continuous batch supply, streamlining the procurement phase for massive electrical engineering endeavors.

• OEM & Supply Chain Reliability: Flexibility is at the core of our manufacturing process. We fully support custom OEM requirements, including specialized anchor clamps and tailored fittings. By providing free samples for rigorous pre-purchase evaluation and maintaining a highly efficient production line, we guarantee secure supply chains and strict adherence to critical project delivery schedules.

Why Choose Us

Selecting the right manufacturing partner is a critical decision that impacts the longevity and safety of your electrical infrastructure. We bring decades of specialized engineering expertise to every component we produce, ensuring that your procurement process is backed by technical authority and operational reliability.

• Uncompromising Quality Control: Every single unit undergoes rigorous factory testing before dispatch. From power-frequency withstand tests to mechanical endurance trials, we ensure that the product you receive performs exactly to the specified technical standards.

• Engineering Consultation: Our team of seasoned electrical engineers is available to analyze your specific grid requirements, offering tailored advice on altitude adjustments, climatic adaptations, and optimal installation practices.

• Scalable Production Capacity: Whether you require a localized upgrade or a nationwide grid expansion, our advanced manufacturing facilities are equipped to handle high-volume orders without compromising on the precision or finish of the individual components.

• Global Logistics Expertise: We understand that timely delivery is non-negotiable for project timelines. Our dedicated logistics team coordinates robust packaging and efficient shipping routes, ensuring materials arrive at your site in pristine condition and on schedule.

Frequently Asked Questions (FAQ)

We understand that specifying high-voltage equipment requires absolute clarity. Below are detailed answers to the most critical technical and operational questions regarding our cutout fuse kit.

Q1: How does the 7000mm leakage distance benefit installations in highly polluted industrial zones?

A1: A higher leakage distance forces electrical tracking to travel a longer path across the insulator's surface. In areas with heavy industrial dust, mining particulates, or coastal salt, this significantly reduces the probability of a pollution flashover, ensuring the grid remains active and minimizing emergency maintenance interventions.

Q2: What specific adjustments are made for installations at altitudes exceeding 1,000 meters?

A2: At higher altitudes, the air density decreases, which lowers the dielectric strength of the surrounding air. To compensate for this, we customize the external insulation dimensions and increase the arcing distance, ensuring the impulse voltage and power-frequency withstand capabilities remain fully compliant with IEC safety standards.

Q3: Are you capable of providing the complete suite of documents required for international government tenders?

A3: Absolutely. We maintain a comprehensive repository of compliance documentation, including type test reports, ISO certifications, technical drawings, and material declarations. Our whole set of documents is ready for submission to support your bidding on large-scale utility and municipal projects.

Q4: Can the mechanical fittings, such as the anchor clamps, be customized to match our existing pole hardware?

A4: Yes, we offer extensive OEM services. Our engineering team can modify the mounting brackets, anchor clamps, and terminal connectors based on your specific dimensional requirements, ensuring a flawless and secure integration with your current crossarms and infrastructure.

Q5: How do we initiate the process for acquiring samples for our internal laboratory testing?

A5: We are pleased to provide free samples to facilitate your quality assurance processes. You simply need to provide your exact technical specifications and cover the associated freight charges. Once confirmed, we expedite the sample dispatch to help keep your project evaluation phase strictly on track.

Q6: Does your engineering team assist with material design for complete MV and LV EPC projects?

A6: Yes, we have a dedicated design team with years of experience supplying LV and MV EPC materials in large lots. We collaborate closely with project managers and structural engineers to optimize the bill of materials, ensuring compatibility and cost-efficiency across the entire electrical network.

Basic Info.

Q1: Samples providing?

A1: We are providing the samples for free, but need pay for the freight charge.

Q2: EPC material design and provide in lot?

A2: Yes, we are supplying for LV and MV EPC material in lot many years,and have strong design team.

Q3: OEM available?

A3: Yes, we are providing the anchor clamp as custom requirement.

Q4: Complete documents for tender?

A4: Yes, whole set documents ready for submit.
