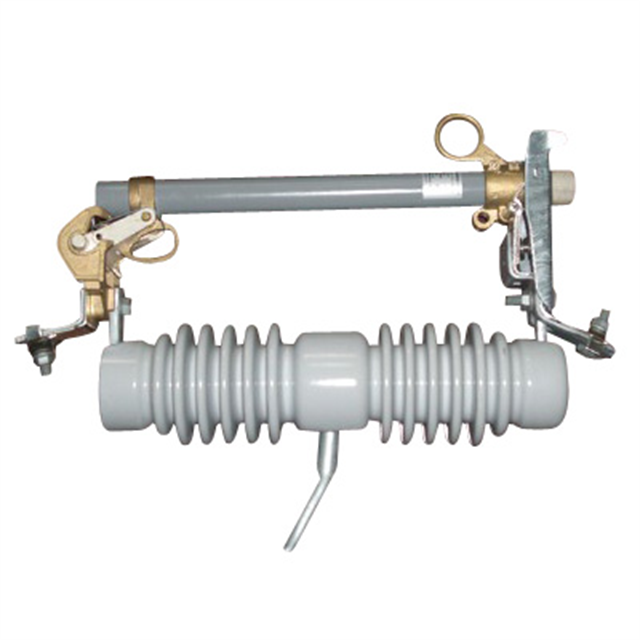

Outdoor Expulsion Drop Out Fuse Cutout For Distribution Series

Product Description

The Outdoor Expulsion Drop Out Fuse Cutout For Distribution Series acts as the critical first line of defense for overhead electrical networks. Crafted with meticulous engineering, the solid exterior presents a sleek, weather-defying finish that naturally sheds water and prevents the accumulation of conductive airborne contaminants. Upon physical inspection, the substantial weight of the silver-plated copper alloy contacts and the rigid structural density of the insulator body instantly communicate a profound sense of craftsmanship and enduring reliability. This apparatus is expressly calibrated to sever fault currents with instantaneous precision, effectively neutralizing the threat of catastrophic transformer damage and cascading power grid failures.

By incorporating advanced arc-quenching composites within the core tube, it guarantees a clean, decisive circuit break during severe overcurrent anomalies. The activation produces a distinct, sharp acoustic signature that confirms a successful arc interruption, followed by a smooth, gravity-assisted drop of the carrier. Grid operators will highly value the precise geometric alignment of the mechanical trunnions, which ensures a fluid, predictable pivot motion under all climatic stressors. This flawless mechanical sequence translates directly into fewer emergency maintenance dispatches, drastically reduced network downtime, and a highly optimized operational expenditure for large-scale utility deployments.

Product Specifications

Condition of Use:

1. The ambient air temperatures within the range of -30 degree to +40 degree;

2. The altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )

3. Frequency of the A. C. Power supply not less than 48Hz and not exceeding 52Hz;

4. Earthquake intensity not exceeding 7 degrees;

5. Maximum wind speed not exceeding 35m/s.

Technical Standard:

The technical performance of the products is in confirmed to IEC291, 282.

Key Features & Highlights

Engineered to elevate the safety and efficiency of modern distribution networks, this cutout series integrates seamlessly into existing infrastructure while offering unparalleled fault mitigation. The design philosophy centers on maximizing uptime and simplifying routine maintenance for field crews operating in demanding environments.

• Instantaneous Fault Isolation: Rapidly disconnects compromised line segments to preserve the integrity of upstream transformers and substations, preventing widespread blackouts.

• Visual Status Indication: The distinct drop-out mechanism provides an immediate, clear visual cue to ground patrols, eliminating guesswork during fault location and accelerating recovery times.

• Low-Resistance Pathway: High-purity conductive pathways minimize energy loss and prevent dangerous thermal buildup during continuous heavy load cycles.

• Tool-Friendly Operation: Ergonomically designed lifting eyes and hinge geometries allow for effortless engagement and disengagement using standard insulated hot sticks.

• Extended Service Lifecycle: Premium anti-corrosion treatments on all exposed ferrous hardware ensure decades of reliable service without structural degradation, even in humid climates.

Engineering Excellence & Design Dimensions

Core Material & Insulation Craftsmanship

Selecting the right insulation is critical for long-term grid stability. We offer highly customizable insulator materials, including high-strength traditional ceramics and advanced silicone rubber polymers, tailored to specific environmental demands.

• Composite Tube Architecture: Features a rugged epoxy fiberglass outer shell paired with an inner arc-quenching lining for maximum burst strength and durability.

• Anti-Aging & UV Resistance: The exterior sheds water efficiently, preventing tracking and flashovers in heavily polluted or coastal regions, ensuring long-term dielectric integrity.

• Silver-Plated Contacts: Utilizing premium copper and copper alloys with thick silver plating to drastically reduce contact resistance, minimize oxidation, and control operational temperature rise.

Efficient Arc Extinguishing & Interrupting Capacity

When overload or short-circuit events occur, milliseconds matter. This series is engineered for instantaneous protection, preventing localized faults from cascading into systemic outages.

• Rapid De-ionization: Under the intense heat of an electrical arc, the inner liner instantly releases high-pressure de-ionizing gases to rapidly cool and extinguish the arc.

• Directional Exhaust Design: A single-vent downward exhaust mechanism safely directs expelled gases away from adjacent phases, preventing secondary flashovers and protecting nearby equipment.

• Full-Fault-Spectrum Reliability: Rigorously tested and verified to flawlessly interrupt everything from low-level overloads to massive short-circuit currents up to 12000A.

Mechanical Design & Operational Reliability

Designed from the perspective of frontline utility workers, the mechanical geometry of this cutout prioritizes safety, ease of use, and absolute reliability during live-line operations.

• Precision Alignment: Deep-groove cast copper lower hinges prevent accidental dislodgement during severe vibrations, heavy winds, or intense switching impacts.

• Visible Drop-Out Indicator: Upon fuse melting, the carrier tube swings down definitively, allowing patrol teams to instantly identify the blown phase from a distance.

• Seamless Tool Integration: Fully compatible with standard portable loadbreak tools (such as Loadbuster hooks), ensuring safe, arc-free, and rapid fuse replacement.

Environmental Adaptability & Extreme Condition Protection

Power distribution networks span some of the most unforgiving climates on the planet. This cutout series is rigorously fortified to maintain structural and electrical integrity regardless of the weather.

• Wide Temperature Tolerance: Operates flawlessly in extreme ambient air temperatures ranging from a freezing -30°C to a blistering +40°C without material embrittlement.

• Disaster Resilience: Engineered to withstand seismic intensities up to 7 degrees and endure maximum wind speeds of 35m/s without mechanical failure or unwanted triggering.

• Wildlife & Altitude Defense: Features a solid-core birdproof design to prevent wildlife-induced faults, with customizable leakage distances (up to 850mm) for high-altitude installations exceeding 1,000 meters.

International Standards & Stringent Quality Control

For large-scale infrastructure projects, regulatory compliance and uncompromising safety are non-negotiable. Every unit manufactured undergoes rigorous validation to meet the highest global benchmarks.

• Global Certification: Fully compliant with the technical performance requirements of IEC 291, IEC 282, and ANSI/IEEE C37.41 standards, ensuring seamless integration into international grids.

• High-Current Validation: Subjected to grueling short-circuit interrupting capacity tests to guarantee performance and structural integrity under maximum stress conditions.

• Transient Recovery Voltage (TRV) Testing: Ensures the dielectric strength recovers faster than the system voltage, effectively preventing dangerous arc restrikes.

Interchangeability & System Compatibility

Managing spare parts inventory is a significant logistical challenge for utility providers. We have engineered our drop-out cutouts to offer maximum cross-platform compatibility to ease this burden.

• Standardized Dimensions: The mounting brackets and trunnion geometries are designed to match industry-standard specifications perfectly, allowing for drop-in replacements.

• Universal Fuse Holders: The carrier tubes and fuse links are fully interchangeable with major international brands, ensuring you are never locked into a single proprietary ecosystem.

• Cost-Effective Maintenance: This seamless compatibility drastically reduces inventory burdens and simplifies retrofit or repair operations for field technicians across different grid sectors.

Comprehensive Engineering & Tender Support

We understand the complex requirements of securing and executing large-scale utility contracts. Our dedicated support infrastructure is designed to empower your procurement and engineering teams from day one.

• Direct Manufacturer Advantage: Bypass intermediaries to secure highly competitive pricing and gain direct access to our robust R&D design team for technical consultations.

• Flexible Customization: We offer comprehensive OEM services, tailoring components like anchor clamps and insulation profiles to your exact project specifications.

• Complete Tender Documentation: We provide full sets of technical drawings, test reports, and compliance certificates ready for immediate submission in government or grid tenders.

• Risk-Free Evaluation: Complimentary physical samples are available for your engineering team's rigorous evaluation, allowing you to verify the build quality firsthand.
