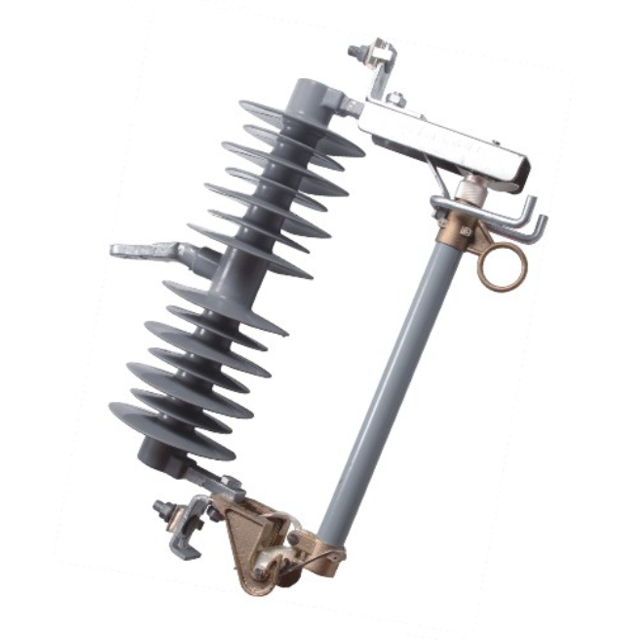

Good Quality Fuse Cutout for Power Line High-Voltage Distribution Protection

Product Description

Securing overhead power distribution networks demands components that do not just perform, but endure. This high-voltage fuse cutout is meticulously engineered to serve as the critical first line of defense against overcurrent and short-circuit faults. Upon physical inspection, the unit presents a substantial, weighty feel, indicative of the dense, high-grade insulating materials utilized in its construction. The smooth, weather-resistant exterior finish of the housing is specifically formulated to repel moisture and resist the accumulation of conductive dust, ensuring long-term surface integrity. When the mechanism is manually engaged, the solid, resonant mechanical click provides immediate tactile and auditory confirmation that the contacts are securely locked into place, promising flawless conductivity.

Beyond its physical robustness, the device operates with silent efficiency, utilizing a precision-calibrated vacuum arc-extinguishing medium that swiftly neutralizes electrical arcs without the harsh, disruptive noise or hazardous emissions associated with older technologies. The heavy-duty moulded case circuit breaker structure is designed to weather the harshest elements, shielding the internal silver-plated copper contacts from atmospheric degradation. For utility operators and infrastructure developers, integrating this protective device translates to minimized downtime, reduced maintenance overhead, and a fortified grid that consistently delivers uninterrupted power to end-users. By preventing catastrophic transformer failures and localizing line faults, this cutout serves as an indispensable asset for modern, resilient electrical distribution systems.

Product Specifications

Key Features & Highlights

To maintain peak operational efficiency in complex distribution networks, this fuse cutout integrates advanced safety mechanisms with durable construction. The design prioritizes rapid fault clearance and long-term reliability, ensuring that utility grids remain protected under volatile electrical conditions.

• Swift Arc Interruption: Employs a highly efficient vacuum arc-extinguishing medium that quenches electrical arcs in milliseconds, preventing equipment damage.

• Optimized Overvoltage Protection: Specifically calibrated to detect and isolate overvoltage anomalies instantly, safeguarding expensive downstream transformers.

• Visual Fault Indication: The drop-out mechanism provides a clear, highly visible physical disconnection, allowing inspection teams to identify blown fuses from ground level instantly.

• Exceptional Leakage Distance: Engineered with a 350mm leakage distance to prevent surface tracking and electrical flashovers, even in highly contaminated environments.

• Heavy-Duty Structural Integrity: The moulded case circuit breaker design offers superior mechanical strength, resisting physical impacts and environmental stress.

Materials & Craftsmanship

The foundation of any reliable high-voltage protective device lies in the uncompromising quality of its raw materials and the precision of its manufacturing process. We utilize industry-leading components to construct a fuse cutout that resists degradation and performs flawlessly over a decades-long lifespan.

• Premium Insulator Bodies: Constructed from high-strength ceramic or advanced silicone rubber polymers, offering an impenetrable barrier against moisture, UV radiation, and atmospheric aging.

• Epoxy Fiberglass Tubes: The internal fuse tube is reinforced with epoxy fiberglass, providing immense burst strength to withstand the intense pressure generated during arc interruption.

• Silver-Plated Copper Contacts: All critical conductive touchpoints are heavily silver-plated, ensuring minimal contact resistance, superior electrical conductivity, and a drastic reduction in operational temperature rise.

• Corrosion-Resistant Hardware: Every metallic fastening and mounting bracket undergoes rigorous galvanization, preventing rust and structural weakening in humid or coastal climates.

Core Electrical Performance

When protecting multi-million-dollar distribution infrastructure, electrical performance metrics are non-negotiable. This unit is rigorously tested to meet and exceed the demanding parameters required for modern, high-capacity power grids.

• High Breaking Capacity: Rated for a breaking current of 10 KA, it confidently intercepts and neutralizes severe short-circuit faults before they can cascade through the network.

• Robust Voltage Endurance: With a 125 KV impulse withstand voltage and a 70 KV power-frequency withstand voltage, the unit easily absorbs lightning strikes and switching surges.

• Precision Fault Isolation: The 100A rated current capacity ensures stable daily operation, while the calibrated fuse link guarantees an exact response curve to overcurrent events.

• Consistent Vacuum Quenching: The vacuum medium ensures that the arc is extinguished cleanly, without the generation of conductive gases that could compromise the surrounding insulation.

Environmental Adaptability

Outdoor distribution equipment must survive the most unforgiving climates on Earth. This fuse cutout is purpose-built to deliver unwavering protection regardless of geographical or meteorological extremes.

• Extreme Temperature Resilience: Operates flawlessly in ambient air temperatures ranging from a freezing -30°C to a scorching +40°C, without material embrittlement or thermal degradation.

• High-Altitude Capability: Fully functional at elevations up to 1,000 meters above sea level, with customizable engineering adjustments available for even higher mountainous installations.

• Severe Weather Resistance: Structurally verified to withstand maximum wind speeds of up to 35m/s, ensuring the unit remains securely mounted during severe storms and hurricanes.

• Seismic Stability: Engineered to endure earthquake intensities of up to 7 degrees, maintaining structural integrity and electrical continuity during seismic events.

International Standards & Certification

Compliance and traceability are paramount for large-scale infrastructure procurement. This product is backed by comprehensive testing and international certifications, ensuring it meets the strict regulatory requirements of global utility markets.

• IEC Compliance: Fully conforms to the rigorous technical performance standards of IEC 291 and IEC 282, guaranteeing interoperability and safety on a global scale.

• ISO Quality Management: Manufactured under the strict guidelines of the ISO9001-2000 certification, ensuring every single unit off the assembly line meets exact quality specifications.

• Comprehensive Tender Documentation: We provide a complete suite of verified test reports, conformity declarations, and technical datasheets, streamlining the submission process for government and private utility tenders.

• Rigorous Factory Acceptance Testing (FAT): Every batch undergoes stringent mechanical and electrical testing prior to export, eliminating the risk of out-of-box failures.

Installation & Maintenance Convenience

Minimizing grid downtime and reducing the physical strain on line workers are key benefits of our design. The intuitive architecture of this fuse cutout significantly accelerates both initial deployment and ongoing maintenance routines.

• Visible Break Technology: The drop-out action creates an unmistakable visual gap when a fault occurs, allowing patrol crews to spot the blown fuse from a distance without specialized diagnostic tools.

• Hot-Stick Compatibility: The trunnion and lifting eye are ergonomically designed for seamless engagement with standard insulated hot sticks, enabling safe, live-line operation and fuse replacement.

• Universal Mounting Bracket: Features a fixed, standardized installation interface that easily bolts onto crossarms or poles, reducing the time required for aerial installation.

• Tool-Free Fuse Replacement: The internal fuse link can be swiftly removed and replaced within the carrier tube without the need for complex tools, getting the line back up and running in minutes.

Applications & Compatibility

Versatility is crucial for inventory management and system integration. This protective device is engineered to fit seamlessly into diverse grid architectures and is fully compatible with existing infrastructure components.

• Transformer Protection: Acts as the primary safeguard for pole-mounted distribution transformers, shielding them from catastrophic overloads and external short circuits.

• Branch Line Sectionalizing: Ideal for isolating lateral branch lines from the main feeder, ensuring that a localized fault does not cause a widespread blackout.

• Capacitor Bank Safeguarding: Provides reliable switching and protective capabilities for overhead capacitor banks, maintaining power quality and voltage stability.

• Cross-Brand Interoperability: The standardized dimensions of the fuse tube and mounting hardware ensure excellent interchangeability with legacy components from other major international manufacturers.

Supply Chain & Engineering Services

Partnering with a robust manufacturer ensures that your project timelines are never compromised by material shortages. We offer end-to-end supply chain reliability and deep engineering support for complex electrification projects.

• Massive Production Capacity: With a verified output of 10,000 pieces per month, we comfortably fulfill high-volume orders for nationwide grid expansion initiatives.

• Custom OEM/ODM Solutions: Our dedicated R&D team can modify structural parameters, hardware materials, and performance curves to meet your specific regional requirements.

• EPC Project Support: We have years of experience supplying comprehensive material lots for Low Voltage (LV) and Medium Voltage (MV) Engineering, Procurement, and Construction (EPC) projects.

• Sample Verification: We provide free physical samples for laboratory testing and field evaluation, allowing your engineering team to validate the product's performance firsthand before committing to a bulk order.

Why Choose Us

Selecting the right manufacturing partner is as critical as selecting the right product. We combine decades of specialized high-voltage expertise with a globally optimized logistics network to deliver unparalleled value to our clients.

• Decades of Proven Expertise: Founded on a deep understanding of high-voltage dynamics, our engineering team continuously innovates to stay ahead of evolving grid demands.

• Global Export Network: We utilize export standard packing—robust wooden crates and reinforced cartons—ensuring zero transit damage, whether shipping by sea freight or air cargo.

• Dedicated Technical Support: From the initial tender design phase to post-installation troubleshooting, our technical advisors provide rapid, comprehensive assistance.

• International Market Presence: Our active participation in major global electrical exhibitions demonstrates our commitment to transparency, continuous improvement, and international collaboration.

Frequently Asked Questions (FAQ)

Below are detailed answers to common technical and procurement inquiries regarding our high-voltage distribution protection equipment.

• Q1: Do you provide samples for quality evaluation before we place a large order?
  A1: Yes, we are pleased to provide samples for free to allow your engineering team to conduct rigorous testing. The client is only responsible for covering the initial freight charge.

• Q2: Can your engineering team assist with EPC material design and provide components in large lots?
  A2: Absolutely. We have a strong, highly experienced design team that has been supplying LV and MV EPC materials in large lots for many years, ensuring seamless integration into your overarching project design.

• Q3: Are custom manufacturing services available for this fuse cutout?
  A3: Yes, custom modifications are fully available. We can provide specific anchor clamps, modified leakage distances, or tailored mounting hardware to meet your exact regional specifications and operational requirements.

• Q4: Can you provide a complete set of documents required for government or utility tender submissions?
  A4: Yes, we maintain a comprehensive database of compliance documentation. A whole set of documents—including ISO certificates, IEC test reports, and technical datasheets—is ready for immediate submission to support your tender bids.

• Q5: How does the product perform in environments with altitudes exceeding 1,000 meters?
  A5: The standard model is rated for altitudes up to 1,000 meters. However, if your installation site is at a higher elevation, our engineering team will adjust the insulation parameters and arcing distances to compensate for the thinner air, ensuring optimal performance.

• Q6: What type of packaging is used to protect the ceramic or polymer insulators during international transit?
  A6: We utilize strictly regulated export standard packing. Products are secured in custom-fitted, shock-absorbing materials within heavy-duty reinforced cartons or fumigated wooden crates to guarantee they arrive in pristine condition, ready for immediate deployment.
