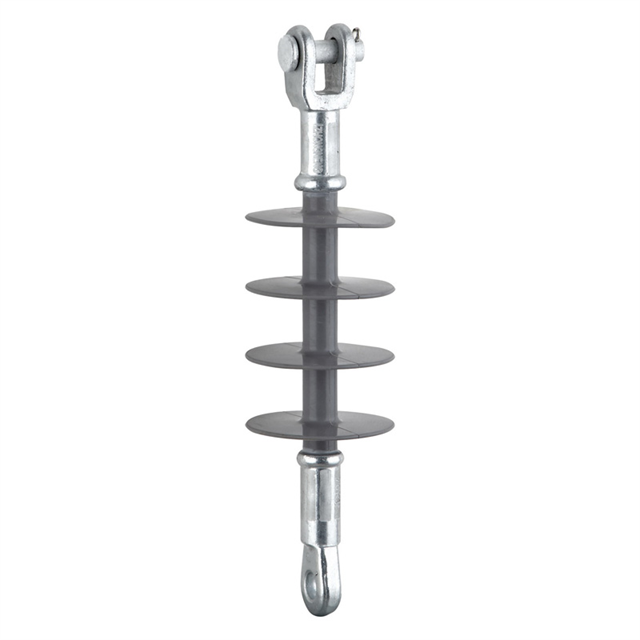

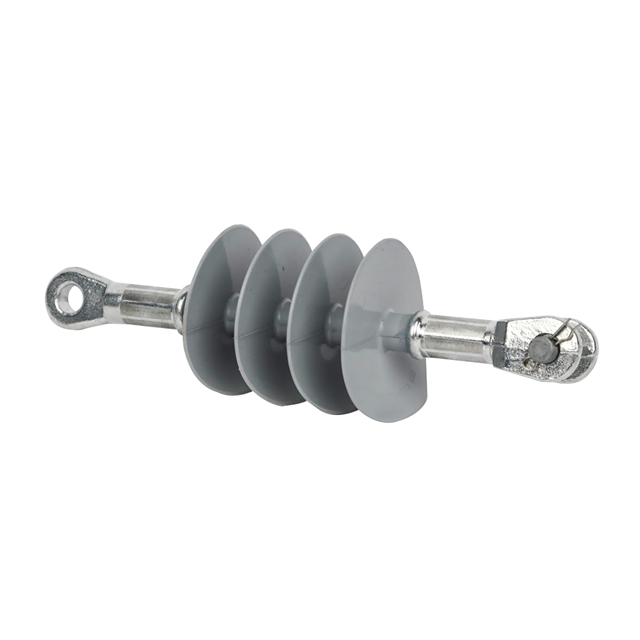

High Voltage Polymer Suspension Insulator For Power Networks

Product Description

The High Voltage Polymer Suspension Insulator represents the pinnacle of modern power network engineering, meticulously crafted to replace heavy, fragile legacy porcelain alternatives. When you run your hands over the exterior, you immediately notice the smooth, highly engineered silicone rubber housing. This tactile, weather-resistant finish is not just for aesthetics; it is a highly active hydrophobic shield designed to repel moisture instantly, preventing the formation of conductive water films. Beneath this resilient exterior lies an unyielding core of fiberglass reinforced polymer (FRP), providing a solid, dense structural rigidity that guarantees long-term stability under immense physical strain. The transition from the polymer body to the metallic end fittings is seamless, achieved through a precision cold-crimping manufacturing process that eliminates any acoustic voids or micro-gaps, ensuring zero internal partial discharge.

For procurement professionals and grid developers, this insulator is a strategic asset that directly improves operational efficiency and network safety. By significantly reducing the weight burden on transmission towers, it allows for faster, safer, and more cost-effective installation processes. The exceptional craftsmanship ensures that once installed, the product remains virtually maintenance-free, quietly and reliably performing its critical insulation duties. Whether deployed in freezing, ice-prone valleys or sweltering, highly polluted industrial zones, this suspension insulator maintains its structural integrity and electrical resistance, dramatically lowering the total cost of ownership and safeguarding the continuous flow of electricity to communities and industries alike.

Product Specifications

Key Features & Highlights

Our High Voltage Polymer Suspension Insulator is engineered to resolve the most pressing challenges faced by modern electrical grids, offering a sophisticated blend of material science and mechanical engineering. It is designed not just to meet baseline standards, but to exceed expectations in longevity, safety, and operational efficiency for large-scale utility deployments.

• Advanced Hydrophobic Surface: The premium silicone rubber actively repels water and environmental contaminants, drastically reducing the risk of tracking and flashovers.

• Optimized Creepage Design: With a generous 620mm creepage distance, it provides superior insulation even in heavily polluted or coastal environments.

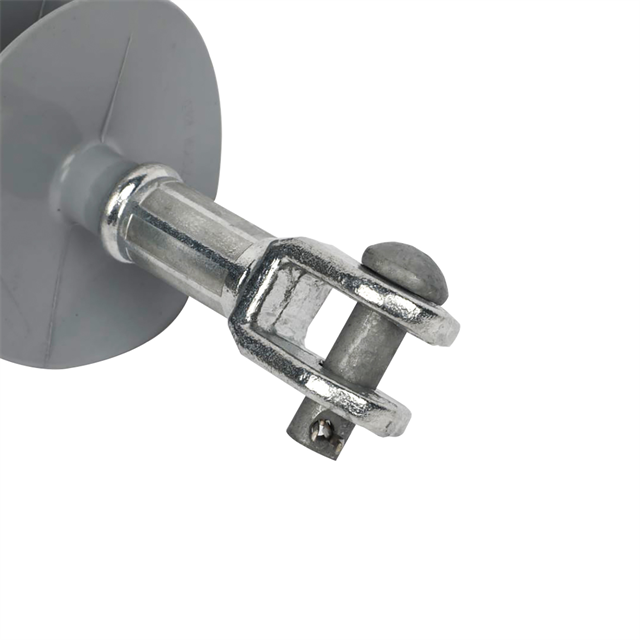

• Precision End-Fittings: Utilizing state-of-the-art crimping technology, the metal fittings are permanently bonded to the FRP core, ensuring maximum load transfer without slippage.

• Shock and Vandal Resistant: Unlike traditional glass or porcelain, the polymer construction is highly resilient to physical impacts, vibrations, and accidental damage during transport.

• Streamlined Inventory Management: The versatile design and broad application range mean utility companies can standardize their inventory, reducing overhead costs.

Material & Construction

The foundation of this high-performance insulator lies in its uncompromising material selection and advanced construction methodology. By synergizing different high-grade materials, we have created a product that offers unparalleled durability and electrical isolation for critical infrastructure.

• High-Strength FRP Core: At the center is a pultruded Fiberglass Reinforced Polymer rod, providing the ultimate structural backbone capable of withstanding immense tensile stress without deformation.

• Premium Silicone Rubber Sheds: The exterior housing is injection-molded from high-grade silicone rubber, offering a soft yet incredibly tough barrier against UV radiation, ozone, and chemical degradation.

• Flawless Interface Bonding: Through an advanced vulcanization process, the silicone housing is chemically bonded to the FRP core, completely eliminating internal air gaps and the risk of interfacial electrical breakdown.

• Corrosion-Resistant Hardware: The metallic end fittings are hot-dip galvanized to exact specifications, ensuring decades of rust-free performance even in highly corrosive atmospheric conditions.

Superior Electrical Performance

Electrical reliability is non-negotiable for overhead transmission lines. This insulator is meticulously calibrated to deliver flawless electrical performance, ensuring that power networks operate continuously without disruptive outages or dangerous leakage currents.

• High Impulse Withstand: Engineered to handle severe electrical anomalies, it boasts a Lightning Impulse Withstand Voltage (Uimp) of 105 kV (peak), safeguarding lines against sudden atmospheric surges.

• Robust Power Frequency Tolerance: With a Power Frequency Withstand Voltage (Uw 1min) of 42 kV (peak), it easily manages sustained overvoltage scenarios during grid fluctuations.

• Extended Creepage Distance: The 620mm minimum nominal creepage distance is specifically designed to lengthen the path of potential leakage currents, effectively neutralizing the threat of surface tracking.

• Optimal Arcing Distance: A carefully calculated minimum arcing distance of 225mm ensures that any potential flashover occurs through the air rather than damaging the insulator body, preserving the asset's lifespan.

High Mechanical Strength

Transmission networks are constantly subjected to severe mechanical stressors, from the sheer weight of the conductors to the violent forces of nature. This suspension insulator is built to act as an unbreakable link in your overhead line infrastructure.

• 70 kN Tensile Load Capacity: Rated for a massive 70 kN mechanical bending and tensile load, it confidently supports heavy, long-span conductors without yielding.

• Extreme Weather Resilience: The robust FRP core maintains its structural integrity even when subjected to the extreme mechanical loads caused by heavy ice accumulation and gale-force winds.

• Vibration Dampening: The inherent flexibility of the polymer materials helps to absorb and dissipate high-frequency aeolian vibrations, protecting both the insulator and the conductor from fatigue failure.

• Fail-Safe Crimping: The acoustic-monitored crimping process ensures that the mechanical load is distributed evenly across the core, preventing localized stress fractures and catastrophic line drops.

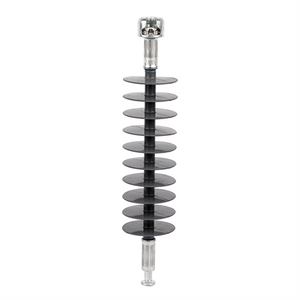

Environmental & Pollution Resistance

Environmental degradation is the leading cause of premature insulator failure. Our polymer suspension insulator is specifically formulated to thrive in the most hostile climates and heavily polluted regions, ensuring continuous operation where other materials fail.

• Exceptional Hydrophobicity: The silicone surface naturally beads water, preventing the formation of continuous moisture tracks and significantly reducing the risk of pollution-induced flashovers.

• Hydrophobic Recovery: Even if the surface becomes temporarily coated in industrial dust or salt spray, the silicone material dynamically transfers its water-repellent properties to the pollution layer itself.

• Broad Temperature Range: rigorously tested to perform flawlessly in ambient air temperatures ranging from a freezing -40°C to a blistering +40°C, making it suitable for global deployment.

• UV and Ozone Immunity: The specialized polymer blend is highly resistant to ultraviolet degradation and ozone cracking, ensuring the sheds remain flexible and intact over decades of sun exposure.

Lightweight & Maintenance-Free

Operational efficiency extends beyond electrical performance; it includes logistics, installation, and long-term upkeep. This polymer insulator revolutionizes grid construction by offering a lightweight, zero-maintenance alternative to traditional materials.

• Fraction of the Weight: Weighing significantly less than equivalent porcelain or glass insulators, it dramatically reduces international shipping costs and simplifies site logistics.

• Reduced Tower Load: The lightweight nature decreases the dead weight on transmission towers, allowing for lighter tower designs or the upgrading of existing lines without structural reinforcement.

• Rapid Installation: Linemen experience less physical fatigue during installation, and the shatterproof design means there is no risk of breakage if accidentally dropped during handling.

• Zero Washing Required: Thanks to its self-cleaning aerodynamic profile and hydrophobic properties, the need for costly and dangerous periodic line washing is entirely eliminated.

EPC Project & Tender Support

Executing large-scale electrification projects requires more than just superior products; it demands a partner capable of providing comprehensive technical and administrative support. We are fully equipped to empower your procurement and engineering teams.

• Ready for Tenders: We provide a complete, meticulously organized set of technical documents, type test reports, and compliance certificates ready for immediate submission in government and utility tenders.

• Proven Track Record: With years of experience supplying low and medium voltage materials in large lots for international EPC projects, we understand the strict timelines and quality gates required.

• Expert Design Team: Our strong in-house engineering team is available to collaborate on complex grid designs, ensuring the insulators perfectly match your specific project parameters.

• Quality Assurance: Every batch undergoes rigorous factory acceptance testing (FAT) to guarantee that the products delivered to your site perform exactly as specified in the tender documents.

Customization & Sample Services

We recognize that no two power networks are exactly alike. Topography, climate, and local regulations often require specialized solutions. Our manufacturing facility is highly agile, offering deep customization and transparent sample evaluation to ensure perfect project alignment.

• High Altitude Adjustments: While standard units are rated for altitudes up to 1,000m, our engineering team can seamlessly adjust the creepage and arcing designs for installations in mountainous regions exceeding this elevation.

• Full OEM/ODM Capabilities: We offer comprehensive custom manufacturing, including the design and integration of specific anchor clamps and end-fittings based on your unique structural requirements.

• Risk-Free Evaluation: We confidently provide free product samples to your engineering departments for hands-on quality testing and mechanical evaluation (freight charges collected).

• Flexible Production Scaling: Whether you require a specialized small-batch run for a pilot project or continuous high-volume output for a national grid expansion, our production lines adapt to your schedule.

Why Choose Us

Partnering with a reliable manufacturer is the most critical decision for the success of any power infrastructure project. With a sprawling 40,000 square meter state-of-the-art manufacturing facility and over 22 years of dedicated exporting experience, we have established ourselves as a cornerstone in the global electrical components industry. Our products are currently securing power networks in over 50 countries, trusted by international contractors and utility boards alike.

Our commitment to excellence is validated by strict adherence to ISO9001:2015 Quality Management Systems and comprehensive testing by internationally recognized bodies such as KEMA. From the meticulous sourcing of raw silicone and FRP materials to the final automated crimping and high-voltage testing, every step of our production process is engineered to eliminate defects. We don't just supply insulators; we deliver long-term grid security, backed by a dedicated workforce of over 200 professionals and a robust OEM/ODM framework designed to bring your specific engineering visions to life.

FAQ

Q1: Are you providing samples for evaluation before large-scale procurement?

A1: Yes, we are highly confident in our product quality and provide samples for free to assist your engineering team with their technical evaluation. Please note that the buyer is only required to pay for the freight charge.

Q2: Can you support EPC material design and provide products in large lots?

A2: Absolutely. We have a strong, experienced design team and have been supplying LV and MV EPC project materials in large lots for many years, ensuring seamless integration into your project timelines.

Q3: Is OEM service available for specific project requirements?

A3: Yes, OEM and ODM services are fully available. We can provide customized solutions, including specific anchor clamps, unique creepage distances, and tailored end-fittings as per your custom requirements.

Q4: Do you provide complete documents for government or utility tenders?

A4: Yes, we understand the rigorous demands of the bidding process. We have a whole set of documents, including technical specifications, test reports, and quality certificates, ready for you to submit for tenders.

Q5: What happens if our project is located at an altitude higher than 1,000 meters?

A5: The standard model is designed for altitudes up to 1,000m. However, if your installation site exceeds this altitude, our engineering team will adjust the insulator's design (such as increasing the arcing distance and creepage) to ensure safe and reliable high-voltage performance in thinner air.

Q6: How does the silicone rubber housing improve the lifespan of the insulator?

A6: The premium silicone rubber housing features excellent hydrophobicity, meaning it actively repels water and prevents the formation of conductive moisture films. This significantly reduces the risk of pollution flashovers, tracking, and erosion, thereby extending the operational lifespan of the insulator with virtually zero maintenance.
