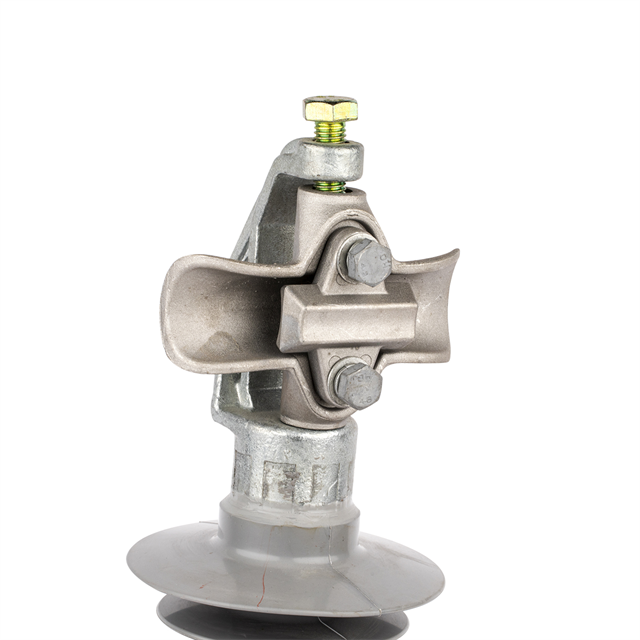

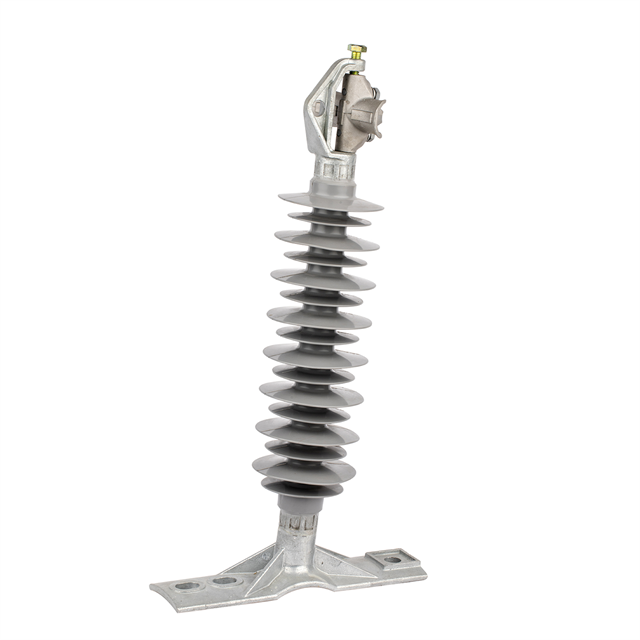

Composite Line Post Insulator for Electrical Safety

Product Description

The Composite Line Post Insulator represents a fundamental paradigm shift in high-voltage transmission infrastructure. Crafted with meticulous attention to detail, the exterior features a visually flawless, smooth silicone rubber housing that feels incredibly resilient to the touch, indicating its premium high-temperature vulcanized composition. Beneath this weather-shedding exterior lies a rigid, high-density fiberglass core rod, providing a solid, unyielding backbone that guarantees exceptional structural integrity under severe mechanical stress. When integrated into your electrical grid, these insulators perform silently and efficiently, entirely eliminating the dangerous crackling sounds and visual arcing often associated with electrical leakage and corona discharge found in aging ceramic alternatives.

The highly controlled manufacturing process ensures a seamless, void-free interface between the fiberglass core and the polymer housing, completely eradicating the risk of internal moisture ingress and subsequent electrical breakdown. Its remarkably lightweight nature—weighing merely a fraction of traditional porcelain equivalents—transforms the installation experience, allowing field technicians to maneuver and mount the units with unprecedented ease and safety. By upgrading to these advanced composite solutions, infrastructure operators can drastically reduce maintenance overhead, prevent costly power outages caused by pollution flashovers, and ensure a continuous, reliable flow of electricity across diverse and demanding geographical environments.

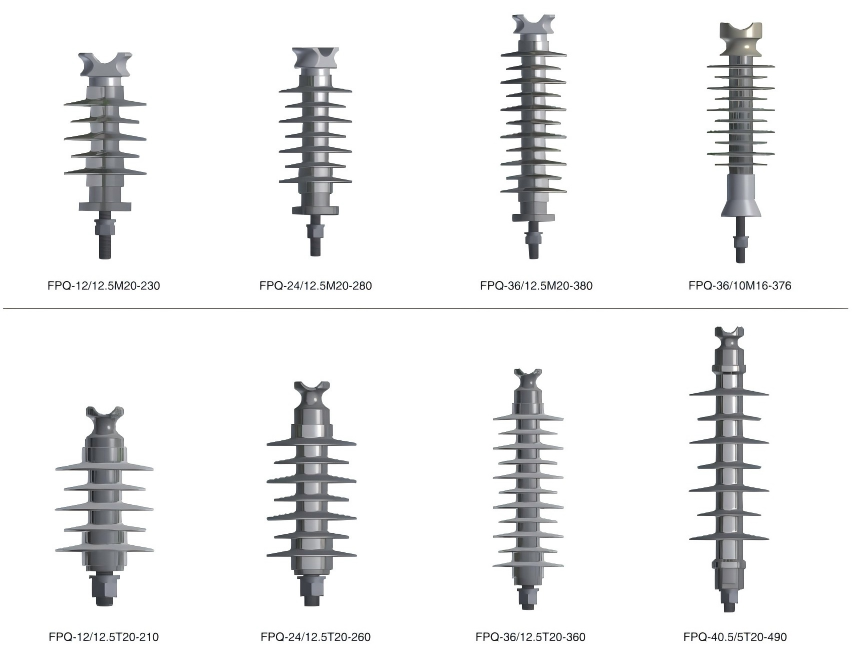

Product Specifications

Key Features & Highlights

Upgrading your transmission lines with our composite insulators brings immediate, measurable improvements to grid stability and operational efficiency. Designed specifically to replace outdated, heavy infrastructure, these units offer a multitude of operational advantages that directly address the most pressing challenges faced by modern utility operators.

• Superior Hydrophobicity: The advanced silicone surface actively repels water, causing moisture to bead up and roll off rapidly. This critical feature prevents the formation of continuous conductive moisture films during heavy rain.

• Unmatched Tracking Resistance: Engineered to withstand severe electrical stress, the specialized housing material prevents carbon tracking and electrical corrosion, significantly extending the active lifespan of the unit.

• High Bending and Tensile Strength: The robust fiberglass core absorbs and dissipates extreme mechanical loads, offering incredible resistance to high winds, heavy ice accumulation, and extreme conductor tension.

• Shatterproof and Shock Resistant: Unlike fragile porcelain components, the polymer construction is highly resilient to physical impacts, virtually eliminating damage during transit, rough handling, and potential vandalism.

• Effortless Interchangeability: Intelligently designed with top and bottom mounting dimensions that perfectly match standard porcelain pin insulators, allowing your crews to execute seamless, drop-in replacements without modifying existing crossarms.

Material & Craftsmanship

The foundation of any reliable electrical component lies in the purity of its raw materials and the precision of its assembly. Our insulators are meticulously crafted utilizing premium High-Temperature Vulcanized (HTV) silicone rubber for the weather sheds, paired with an exceptionally robust fiberglass core rod. The metal end fittings are treated with heavy-duty hot-dip galvanization to prevent rust and degradation over decades of exposure to the elements.

• Advanced Injection Molding: Utilizing state-of-the-art integral injection molding techniques, the silicone housing is seamlessly bonded to the fiberglass core, leaving absolutely no microscopic voids or air pockets.

• Precision Crimping Technology: The metal end fittings are attached using a highly controlled, multi-directional crimping process that distributes mechanical stress evenly, ensuring the fittings never detach under heavy line loads.

• Zero Interface Breakdown: The flawless integration of all components completely eliminates the risk of internal electrical breakdown, guaranteeing absolute structural and insulating stability for the lifetime of the product.

Electrical & Mechanical Performance

When safeguarding critical high-voltage networks, compromising on performance is never an option. These composite line post insulators are engineered from the ground up to deliver mechanical capabilities that far exceed traditional ceramic alternatives, boasting extraordinary tensile and cantilever bending strength. This ensures the transmission line remains securely supported even under extreme physical tension or severe weather events.

• Exceptional Dielectric Strength: The meticulously formulated polymer materials provide a formidable, impenetrable barrier against electrical leakage, maintaining total grid integrity.

• Optimized Creepage Distance: Designed with an extended, aerodynamically optimized creepage profile, the insulator effectively manages surface currents, drastically reducing the probability of dangerous flashovers.

• Surge and Impulse Resilience: Fully capable of withstanding intense system operating voltages and sudden, violent lightning impulse overvoltages, protecting sensitive downstream equipment from catastrophic electrical arcs.

Environmental & Pollution Resistance

High-voltage lines often traverse some of the most unforgiving and heavily contaminated environments on the planet. To combat these harsh conditions, the silicone rubber housing is engineered with inherent hydrophobicity and a unique hydrophobic transfer capability. This means that even when covered in industrial dust or salt, the material transfers its water-repelling properties to the pollution layer itself.

• Active Self-Cleaning: Rainwater naturally washes away accumulated dirt, grime, and salt deposits, maintaining the insulator's pristine electrical resistance without the need for costly manual intervention.

• Extreme Weather Endurance: Highly resistant to prolonged ultraviolet (UV) radiation and ozone exposure, preventing the material from becoming brittle, chalking, or aging prematurely in harsh sunlight.

• Pollution Flashover Prevention: Specifically formulated to excel in heavily polluted industrial zones, coastal areas with high salt fog, and regions experiencing extreme temperature fluctuations and high humidity.

Installation & Maintenance Efficiency

The logistical and operational costs associated with infrastructure upgrades can be staggering for any organization. Our composite insulators directly alleviate these financial and physical burdens through their revolutionary lightweight design. Weighing merely 1/7 to 1/10 of equivalent porcelain insulators, they dramatically reduce transportation costs and minimize the physical strain on installation crews working at dangerous heights.

• Damage-Free Transit: The shockproof and completely shatter-resistant nature of the polymer materials means zero breakage during global shipping and rough handling on-site.

• Seamless Retrofitting: Engineered with top and bottom mounting configurations that perfectly mirror traditional porcelain pin insulators, allowing crews to execute rapid, tool-free swaps on existing infrastructure.

• Zero-Maintenance Operation: The self-cleaning and highly durable nature of the composite materials eliminates the need for periodic washing and routine replacements, significantly driving down the long-term operational expenditures of the power grid.

Quality Control & Compliance

Trust in electrical infrastructure is built upon rigorous, uncompromising testing and strict adherence to global safety standards. Every single insulator that leaves the manufacturing floor is a testament to our relentless commitment to quality. The production facilities operate under strict ISO9001 quality management and ISO14001 environmental management systems, ensuring consistency and excellence.

• International Standard Adherence: All products are meticulously designed, engineered, and manufactured to comply with the most stringent global standards, including IEC and ANSI specifications.

• Advanced Diagnostic Testing: The production line is equipped with cutting-edge computer-controlled monitoring and ultrasonic flaw detection systems to identify even the most microscopic internal defects before they become a problem.

• 100% Routine Inspection: We do not rely on random batch sampling; every single insulator undergoes comprehensive routine testing before dispatch, ensuring that our clients receive only flawless, field-ready components.

Customization & EPC Support

We deeply understand that large-scale infrastructure projects require more than just off-the-shelf products; they require adaptable, comprehensive, and tailored solutions. Backed by a formidable research and development team, we provide extensive support tailored to the specific demands of complex engineering, procurement, and construction (EPC) initiatives globally.

• Bespoke Engineering (OEM/ODM): Whether your project requires specific voltage ratings, unique mechanical load capacities, or customized metal anchor clamps, our engineering team can design and produce insulators to your exact specifications.

• Bulk Supply for LV & MV Projects: We possess the advanced manufacturing capacity to consistently supply massive volumes of materials for low and medium-voltage EPC projects, ensuring your project timelines are never delayed.

• Comprehensive Tender Assistance: To empower your procurement and bidding processes, we provide a complete, meticulously prepared set of technical documents, test reports, and certifications required for successful tender submissions.

Why Choose Us

Selecting the right manufacturing partner is critical to the longevity, safety, and profitability of your electrical infrastructure projects. With over two decades of dedicated exporting experience and a sprawling 40,000-square-meter state-of-the-art facility, we have established ourselves as a cornerstone of reliability in the global power sector. Our commitment goes far beyond simply supplying products; we deliver comprehensive, end-to-end solutions that guarantee operational satisfaction.

• Global Footprint: Our high-performance electrical solutions are currently powering grids and protecting infrastructure in over 50 countries, trusted by international utilities and major contractors alike.

• Expert Workforce: A dedicated team of over 200 skilled professionals, including specialized electrical engineers and stringent quality control experts, oversees every single phase of production.

• Certified Excellence: Our extensive portfolio of certifications—including prestigious KEMA type tests and CE declarations—serves as an independent, third-party validation of our uncompromising quality standards.

• Risk-Free Evaluation: We offer complimentary product samples, allowing your engineering and procurement teams to physically verify the superior craftsmanship and material quality before committing to large-scale deployment.

FAQ

Q1: Are you able to provide product samples for physical evaluation before we place a bulk order?

Absolutely. We gladly provide free samples of our composite line post insulators so your engineering team can assess the material quality, weight, and precise mounting dimensions firsthand. The only requirement is that the recipient covers the associated freight charges for the delivery.

Q2: Can your facility support the comprehensive material demands of large-scale LV and MV EPC projects?

Yes, we have a proven, documented track record spanning many years of supplying substantial lots of low and medium-voltage materials for complex EPC projects. Our robust design team and high-capacity automated production lines ensure we meet aggressive project schedules without ever compromising on product quality.

Q3: Do you offer OEM and ODM services for clients with specific technical requirements?

We highly encourage custom requests. Whether you need specialized anchor clamps, unique creepage distances, specific mechanical tension load ratings, or customized metal fittings, our R&D and manufacturing teams can tailor the products to perfectly align with your exact engineering specifications.

Q4: Will you provide the necessary technical documentation required for government or utility tender submissions?

Yes, we fully support our clients during the critical bidding process. We provide a complete, ready-to-submit suite of documentation, including detailed technical specifications, certified test reports from independent laboratories, and all necessary ISO compliance certificates to ensure your tender is competitive and compliant.

Q5: How does the polymer housing maintain its insulating properties in highly polluted or coastal environments?

The HTV silicone rubber housing features inherent hydrophobicity and a unique hydrophobic transfer mechanism. This allows the material to transfer its water-repelling properties to any accumulated dirt, dust, or coastal salt. This vital function prevents the formation of conductive moisture paths, thereby eliminating the risk of pollution flashovers and maintaining grid stability.
