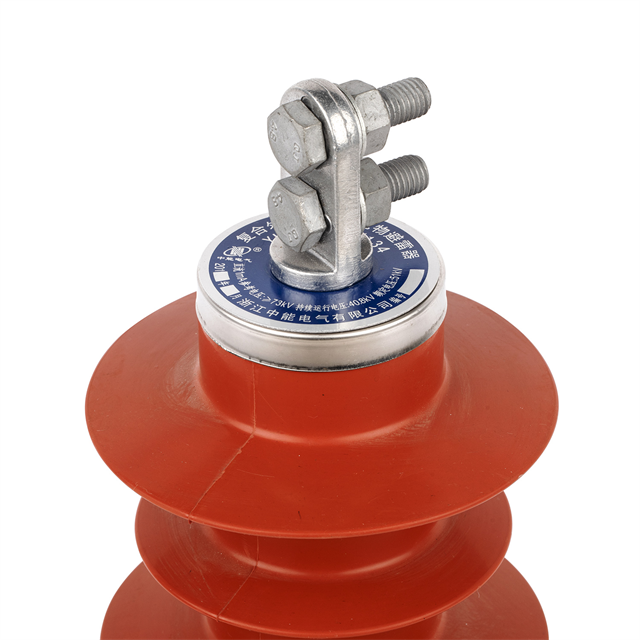

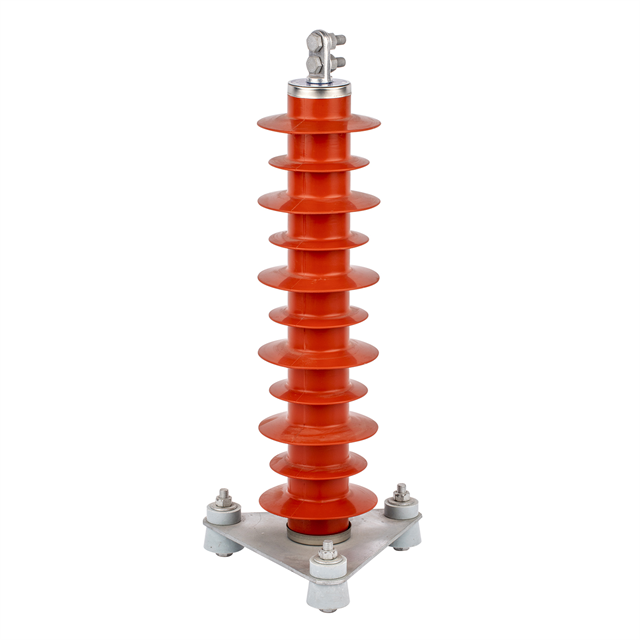

Polymer Lightning Surge Arrester for Outdoor Power Lines

Instantaneous Surge Neutralization: The advanced MOV core reacts in fractions of a microsecond, clamping dangerous voltage spikes before they can reach sensitive downstream equipment.

Exceptional Hydrophobicity: The premium polymer housing naturally repels water, preventing the formation of conductive moisture films and maintaining high insulation resistance.

Anti-Explosion Design: The gapless, solid-core construction inherently prevents pressure buildup, eliminating the risk of violent shattering during severe electrical overloads.

Streamlined Logistics: Weighing significantly less than traditional porcelain alternatives, these units reduce shipping costs and simplify handling at remote installation sites.

Seamless Integration: Designed to mount effortlessly onto existing parallel outdoor frameworks, reducing the time required for system upgrades.

High-Grade ZnO Varistors: The internal core utilizes superior Zinc Oxide (ZnO) Metal Oxide Varistors (MOV). These highly non-linear resistor blocks offer exceptional energy absorption capabilities and rapid surge response, ensuring absolute protection.

Seamless Polymer Housing: Encased in a high-performance polymer and silicone rubber jacket, the arrester boasts a gapless structural design. This tight, void-free construction delivers outstanding moisture resistance and anti-explosion characteristics.

Compact & Lightweight: The transition from traditional porcelain to advanced polymers results in a significantly smaller footprint and lighter weight, reducing mechanical stress on mounting structures and facilitating easier handling.

Corrosion-Resistant Fittings: All metallic end-fittings and connection terminals are treated for superior corrosion resistance, ensuring stable electrical contact over decades of outdoor exposure.

IEC 60099-4 Compliance: Manufactured in strict accordance with IEC 60099-4 standards, guaranteeing reliable performance and international grid compatibility.

Rigorous Quality Control: Every unit undergoes comprehensive factory testing, including residual voltage, leakage current, and partial discharge assessments, to ensure zero defects upon delivery.

Global Grid Readiness: The high-standard design and manufacturing processes provide a solid quality endorsement, meeting the stringent entry requirements of substations and utility networks worldwide.

Verified Durability: Mechanical and electrical type tests confirm the design's ability to withstand repeated high-energy impulses without degrading the core varistor blocks.

Broad Temperature Tolerance: Engineered to operate flawlessly in extreme ambient air temperatures ranging from severe cold at -40°C to intense heat at +40°C.

High Altitude Reliability: Maintains optimal dielectric strength and insulation performance at altitudes up to 2000 meters above sea level without derating.

Mechanical Resilience: Designed to endure maximum wind speeds of up to 35m/s and withstand earthquake intensities up to 7 degrees, ensuring physical stability during natural disasters.

UV and Aging Resistance: The silicone rubber exterior provides exceptional resistance to ultraviolet radiation and environmental aging, effectively mitigating the risk of pollution flashovers.

Ultra-Low Residual Voltage: Engineered to maintain extremely low residual voltage during high-current discharges, minimizing the electrical stress placed on protected equipment.

Massive Energy Absorption: Capable of safely dissipating massive amounts of energy from both direct lightning strikes and internal switching overvoltages, channeling the destructive force safely to the ground.

Asset Preservation: Actively prevents insulation breakdown and physical damage to transformers, distribution lines, and switchgear, maximizing the operational lifespan of the entire grid infrastructure.

Rapid Recovery: Immediately returns to a high-impedance state following a surge event, ensuring continuous, uninterrupted power transmission.

Reduced Transport Costs: The lightweight polymer design drastically cuts down on freight and logistics expenses compared to heavy, fragile porcelain alternatives.

Simplified Aerial Installation: The reduced weight and durable, non-shattering construction make high-altitude installations faster, safer, and less labor-intensive for line crews.

Maintenance-Free Operation: The robust, weather-resistant materials and gapless internal structure eliminate the need for routine internal inspections or cleaning, significantly lowering ongoing operational costs.

Damage Resistance: The flexible polymer housing is highly resistant to vandalism and accidental impact during transit, reducing replacement rates prior to commissioning.

Complete Tender Documentation: We provide a full suite of technical documents, test reports, and compliance certificates, fully prepared and ready for immediate submission in competitive bidding processes.

Dedicated EPC Design Team: Backed by years of experience, our robust engineering team supports Low Voltage (LV) and Medium Voltage (MV) EPC projects with tailored material supply and technical guidance.

Flexible OEM Manufacturing: We offer extensive OEM and ODM services, allowing for custom configurations, specialized anchor clamps, and specific branding requirements to meet unique project specifications.

Risk-Free Evaluation: To ensure complete confidence before bulk purchasing, we provide free product samples for rigorous field testing and evaluation (freight charges apply).

Direct Manufacturer Advantage: By sourcing directly from our state-of-the-art production facilities, you eliminate intermediary markups, ensuring highly competitive pricing for large-scale deployments.

Proven Track Record: With years of dedicated experience supplying major grid expansions and EPC contracts, we possess the logistical capacity to fulfill high-volume orders reliably and on schedule.

Uncompromising Quality Assurance: Every batch undergoes stringent, multi-stage quality inspections, guaranteeing that every arrester delivered performs exactly to specification.

End-to-End Project Support: From initial technical consultation and custom engineering to seamless logistics and after-sales service, we provide a comprehensive partnership designed to streamline your procurement process.
