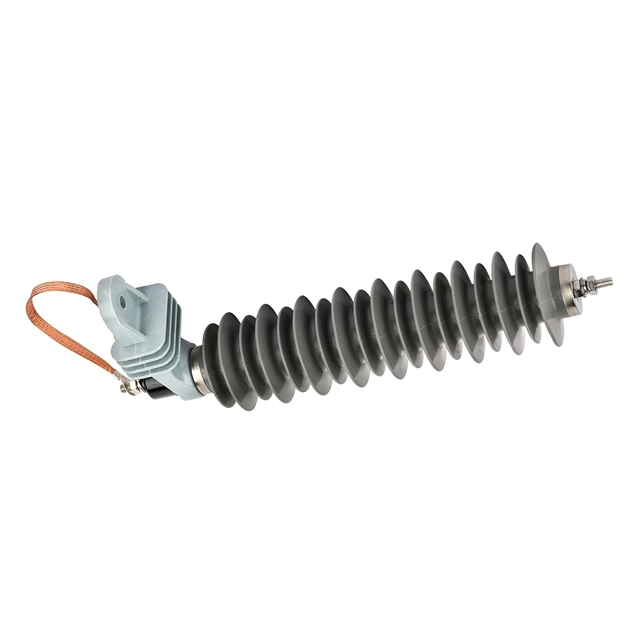

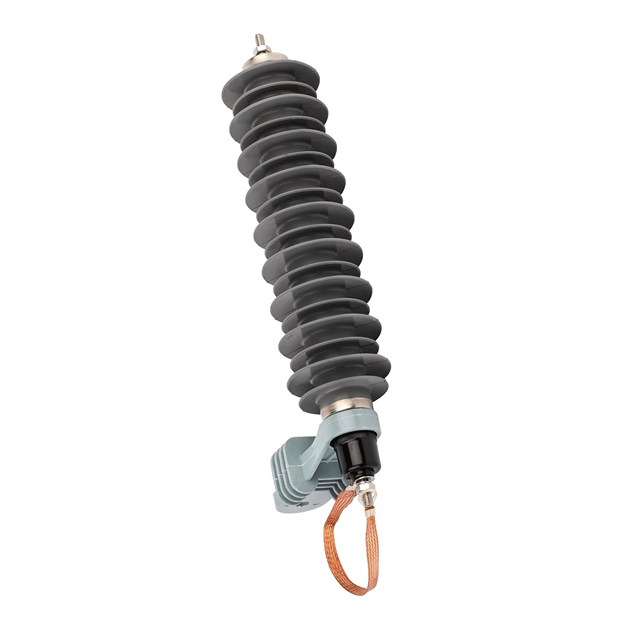

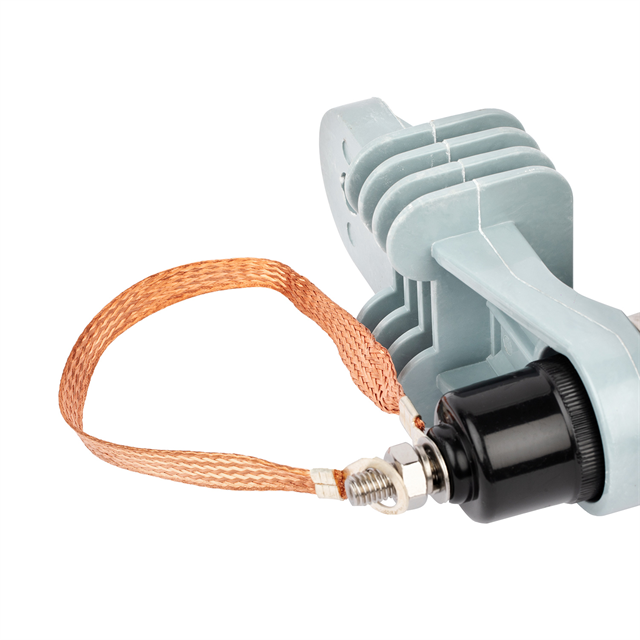

YH10W-36
Product Parameters
Basic Info.
| Rated | Maximun | Current impulse residual voltage | |||||
| Type | Voltage | Continuous | 2ms Rectangular | 4/10µs High | |||
| Operating | current impulse | current impulse | |||||
| Voltage | withstand | withstand | |||||
| 1/4µs | 8/20µs | 30/60µs | |||||
| Lightning | Lightning | Switching | |||||
| Current | current | current | |||||
| impulse | impulse | impulse | |||||
| kV(rms) | kV(rms) | kV(crest) | kV(crest) | kV(crest) | A | kA(crest) | |
| Station | 36 | 29 | 123 | 108 | 92.4 | 250 | 100 |
| Distribution | 36 | 29 | 123 | 108 | 92.4 | 150 | 65 |
Product Description
Characteristics:
-Low residual voltage
-Long protection distance
-High energy input capacity
-Stable volt-ampere characteristic even after multiple strokes
-Proof against ageing
-Explosion and shatter-resistant design
-Pollution resistant and UV-stable
-Housing resistant to rough handling
-Maintenance free
-Stable against shock and vibration
-High mechanical resistance
Technical Standard:
The technical performance of the products is in confirmed to IEC60099-4.
Company Profile
Packaging & Shipping
FAQ
Q1: Samples providing?
A1: We are providing the samples for free, but need pay for the freight charge.
Q2: EPC material design and provide in lot?
A2: Yes, we are supplying for LV and MV EPC material in lot many years,and have strong design team.
Q3: OEM available?
A3: Yes, we are providing the anchor clamp as custom requirement.
Q4: Complete documents for tender?
A4: Yes, whole set documents ready for submit.
