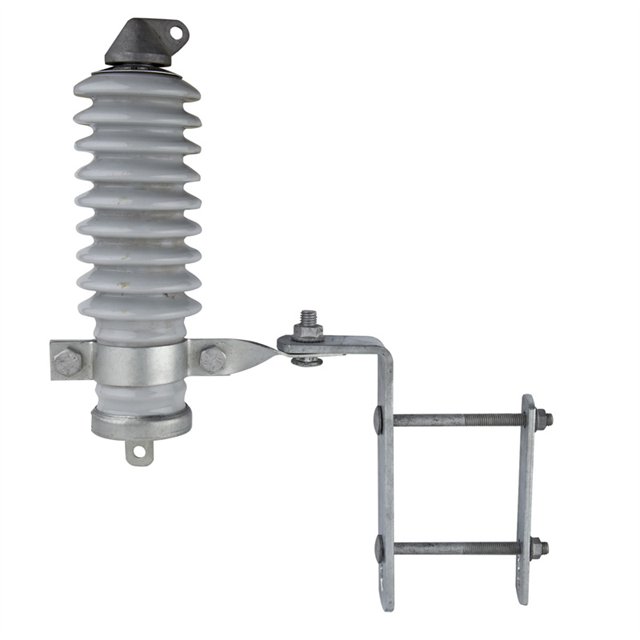

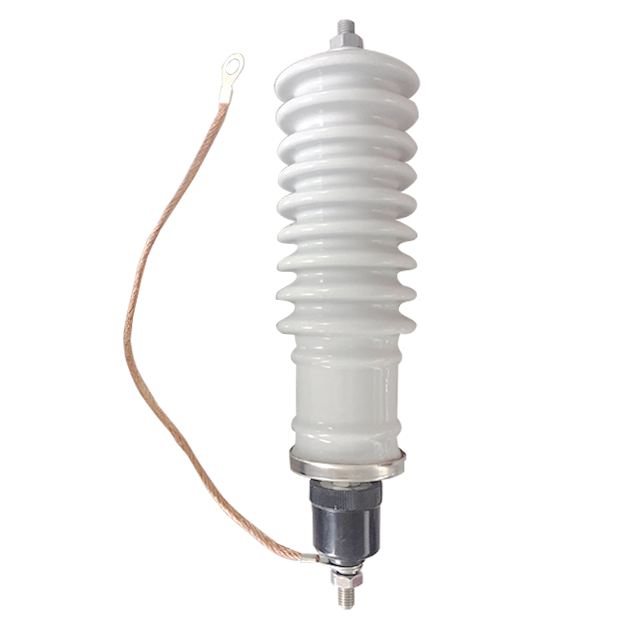

Ceramic Porcelain Surge Arrester For Polluted Industrial Zones

Product Description

The Ceramic Porcelain Surge Arrester stands as a formidable guardian for power grids situated in the most unforgiving industrial and coastal environments. When you examine its robust, kiln-fired porcelain housing, you immediately notice the dense, ultra-smooth glaze designed specifically to shed corrosive salt spray, industrial soot, and heavy rain. This meticulously crafted exterior is not merely aesthetic; it serves as a critical defense mechanism that prevents the accumulation of conductive pollutants, thereby eliminating the risk of catastrophic surface flashovers. Inside this impenetrable ceramic fortress lies an advanced matrix of Zinc Oxide varistors. During normal operation, the unit remains completely silent and thermally stable, acting as a perfect electrical insulator. However, in the fraction of a millisecond that a lightning strike or switching surge hits the transmission line, this arrester instantaneously transitions into a high-capacity conductor. It channels massive, destructive electrical energy safely into the earth, preventing transformers and switchgear from suffering irreversible insulation damage. By integrating this heavy-duty arrester into your infrastructure, you are investing in uninterrupted power delivery, safeguarding expensive substation assets, and ensuring that your operations remain flawlessly functional even when nature unleashes its most violent electrical storms.

Product Specifications

Our surge protection units are manufactured to exact engineering tolerances, ensuring seamless integration into complex power distribution networks. The following technical specifications detail the precise operational parameters, material compositions, and environmental thresholds that make this arrester a top-tier choice for infrastructure projects requiring uncompromising electrical defense.

Key Features & Highlights

Engineered to mitigate the severe risks associated with atmospheric and operational overvoltages, this surge arrester brings unparalleled stability to vulnerable power systems. Every element is optimized to reduce downtime and protect your high-value grid assets from unpredictable electrical anomalies.

• Instantaneous Surge Neutralization: Reacts in fractions of a millisecond to lightning strikes, clamping voltage spikes before they can breach the delicate insulation of your critical transformers.

• Exceptional Thermal Stability: The dense ceramic housing effectively dissipates internal heat generated during high-energy discharges, preventing thermal runaway during repetitive surge events.

• Unyielding Environmental Resilience: The heavy-duty porcelain glaze resists the degrading effects of UV radiation, acidic rain, and abrasive industrial dust, maintaining its structural and electrical integrity for decades.

• Optimized Insulation Coordination: Delivers incredibly low residual voltage, creating a wide safety margin that extends the operational lifespan of all connected substation equipment.

• Seamless Grid Integration: Designed with standardized mounting interfaces, allowing construction crews to deploy these units rapidly across expansive transmission networks without requiring specialized adapters.

Technical Dimensions & Engineering Excellence

To fully understand the superior performance of our surge protection units, it is essential to examine the core engineering dimensions that drive their reliability. Each aspect of the design has been meticulously refined to address the specific pain points of operating high-voltage equipment in heavily polluted regions.

Core Material & Technology

Utilizing a premium ceramic enclosure paired with high-performance Zinc Oxide (ZnO) varistors, this unit exhibits exceptional non-linear volt-ampere characteristics. It boasts a massive energy absorption capacity, ensuring rapid conduction during lightning strikes or switching overvoltages, thereby providing millisecond-level protection for high-voltage apparatus.

Anti-Pollution Performance

Specifically engineered for heavy industrial zones and coastal regions, the design features a significantly increased creepage distance alongside outstanding tracking and corrosion resistance. The ultra-smooth ceramic surface offers excellent self-cleaning properties, effectively preventing pollution flashovers caused by the accumulation of dust and salt fog.

Mechanical Strength & Sealing

The high-strength porcelain housing provides superior mechanical support, easily withstanding extreme wind loads, heavy ice accumulation, and seismic stresses. Internally, an advanced sealing structure completely eradicates the intrusion of moisture and humidity, guaranteeing long-term stable operation in the harshest outdoor environments.

Electrical Protection Efficiency

Characterized by extremely low residual voltage and an immense flow capacity, this arrester safely and efficiently discharges massive lightning surges and switching overvoltage energy directly into the earth. This creates highly reliable insulation coordination for transformers, switchgear, and transmission lines.

Quality Standards & Testing

Manufactured in strict accordance with international benchmarks such as IEC 60099-4 and ANSI C62.11. Prior to leaving the facility, every single arrester undergoes rigorous sealing evaluations, partial discharge testing, and lightning impulse withstand tests to guarantee absolute reliability and safety.

Installation & Maintenance

Featuring a compact structural design, the unit supports multiple mounting configurations to perfectly match various substation and tower structures. The gapless solid-state architecture ensures genuinely maintenance-free operation, delivering a service life of 20 to 30 years and drastically reducing total lifecycle operational costs for large-scale procurement projects.

Why Choose Us

Selecting the right manufacturing partner for critical infrastructure protection requires more than just evaluating a single product; it demands absolute trust in the production capabilities, quality control, and supply chain reliability of the supplier. We are dedicated to empowering your large-scale grid expansions with solutions that never compromise on safety.

• Direct Manufacturer Accountability: By sourcing directly from our advanced production facilities, you eliminate intermediary delays and gain direct access to our engineering support teams for customized voltage requirements.

• Stringent Quality Assurance: Our state-of-the-art testing laboratories simulate the most extreme environmental and electrical conditions, ensuring that every batch delivered to your site performs exactly as specified.

• Scalable Production Capacity: Whether you are outfitting a single rural substation or upgrading an entire national transmission grid, our robust manufacturing lines are equipped to fulfill massive volume orders with strict adherence to delivery schedules.

• Global Standard Compliance: We design our protective equipment to meet and exceed IEC and ANSI standards, ensuring seamless regulatory approval and integration into international power projects.

Frequently Asked Questions (FAQ)

When engineering high-voltage protection systems for severe environments, technical clarity is paramount. Below are detailed answers to the most common technical inquiries our engineering team receives regarding our porcelain surge arresters.

What makes this porcelain arrester perfectly suited for Level IV heavy pollution zones?

The unit is engineered with an extended creepage distance and a highly glazed, non-porous ceramic surface. This specific geometry and finish prevent the buildup of conductive contaminants like industrial soot and salt spray. When it rains, the smooth surface facilitates a natural self-cleaning process, washing away debris and preventing the tracking currents that lead to dangerous pollution flashovers.

How does the gapless Zinc Oxide (ZnO) design improve protection compared to older gapped models?

The gapless ZnO varistor matrix provides a highly non-linear volt-ampere response without the need for series spark gaps. This means there is no delay in response time and no degradation of gap electrodes over time. The solid-state nature of the ZnO blocks ensures instantaneous clamping of overvoltages and a significantly higher energy absorption capacity.

Can this surge arrester withstand severe mechanical stress, such as high winds or seismic activity?

Yes. The high-strength kiln-fired porcelain housing is structurally rigid and designed to serve as a robust mechanical support. It is rigorously tested to endure extreme cantilever loads, high-velocity winds, heavy ice accumulation, and significant seismic vibrations without compromising the internal hermetic seal.

What measures are taken to prevent moisture ingress over a 20 to 30-year lifespan?

Moisture is the primary cause of internal arrester failure. To combat this, our units utilize an advanced, multi-layered internal sealing mechanism at both the top and bottom flanges. Combined with the naturally impermeable ceramic housing, this hermetic seal completely blocks humidity and moisture, ensuring the internal ZnO blocks remain perfectly dry and functional for decades.

Are the rated voltages and mounting configurations customizable for specific substation designs?

Absolutely. While we offer standard configurations ranging from 3kV to 500kV, our manufacturing facility can customize the rated voltage, nominal discharge current, and physical mounting brackets to align perfectly with your specific insulation coordination studies and structural tower requirements.
