Product Description
As a premier manufacturer and supplier of utility-grade electrical infrastructure, we introduce this high-performance outdoor disconnecting switch engineered for medium-voltage networks. Designed to provide absolute circuit isolation, this isolator ensures maximum safety during line maintenance and substation servicing.
Rated Voltage: 12kV
Rated Current: 630A
Configuration: Single-pole outdoor installation
Operation: Manual insulated hook rod

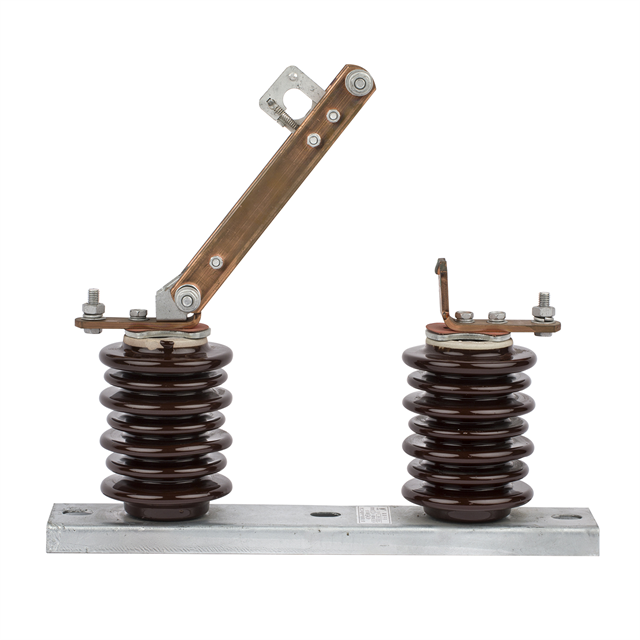

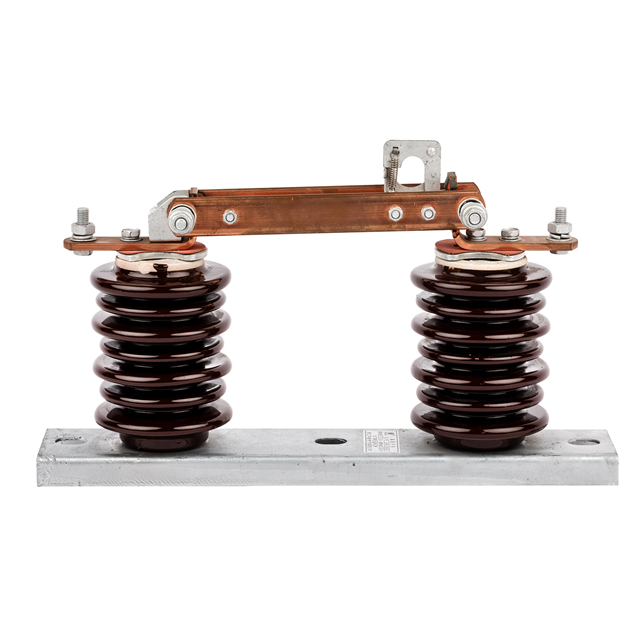

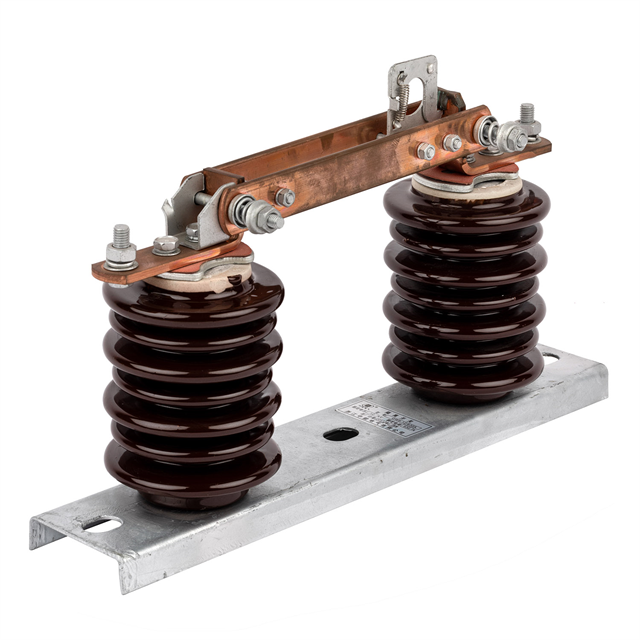

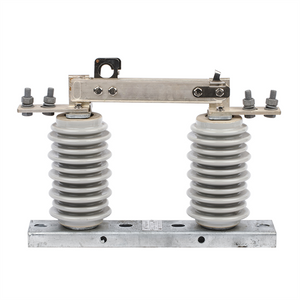

The GW9-12-630A Outdoor High Voltage Disconnecting Switch is meticulously crafted to serve as the critical safety backbone for medium-voltage electrical distribution networks. When examining the physical construction of this isolator switch, the heavy-duty metallic chassis and premium insulating ceramics immediately convey a sense of industrial-grade durability. The contact points are precision-machined from high-conductivity alloys, ensuring a smooth, high-friction engagement that emits a reassuring, solid mechanical click when securely locked into place. This tactile feedback is crucial for field operators, confirming that the circuit is definitively broken and safe for hands-on maintenance. Engineered to withstand the harshest environmental elements, the exterior metallic surfaces feature advanced anti-corrosive galvanization that repels moisture and resists the degrading effects of intense ultraviolet exposure.
By integrating this highly reliable switch into overhead transmission lines or transformer isolation systems, facility managers and grid operators can drastically reduce operational downtime during routine maintenance schedules. The clear, widely separated visible isolation gap provides an unambiguous visual cue of electrical safety, empowering line workers to perform their duties with absolute confidence and peace of mind. Every internal and external component is forged with long-term longevity in mind, ensuring that the disconnecting switch operates flawlessly even after years of continuous exposure to fluctuating ambient temperatures, high wind loads, and heavy atmospheric pollution. This dedication to superior workmanship guarantees a stable, uninterrupted power flow during normal operations while standing ready to provide instant, fail-safe isolation whenever required.
| Parameter | Specification |
|---|---|
| Model | GW9-12 |
| Product Type | Outdoor High Voltage Disconnecting Switch / Isolator Switch |
| Rated Voltage | 12kV |
| Rated Current | 630A |
| Rated Frequency | 50/60Hz |
| Installation Type | Outdoor |
| Structure | Single-pole / Single-phase |
| Operating Method | Manual with insulated hook rod |
| Short-Time Withstand Current | 20kA |
| Peak Withstand Current | 50kA |
| Power Frequency Withstand Voltage | 42kV |
| Lightning Impulse Withstand Voltage | 75kV / 85kV |
| Mechanical Life | 2000 times |
| Ambient Temperature | -30°C to +40°C |
| Altitude | ≤1000m (Standard) |
Engineered for maximum reliability, this disconnecting switch is designed to handle the rigorous demands of continuous outdoor utility operations. By utilizing high-purity conductive materials and reinforced insulators, it minimizes energy loss while maximizing structural integrity under heavy electrical loads.
Unmistakable Visual Isolation: Provides a distinct, highly visible physical gap in the circuit, which is paramount for protecting maintenance personnel from accidental energization.

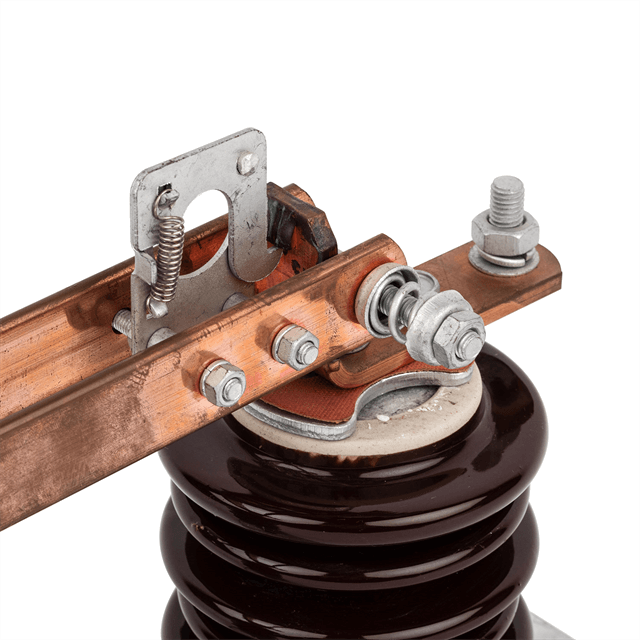

Advanced Self-Locking Mechanism: The precision-engineered locking system firmly secures the contacts, preventing unintended opening or closing due to severe environmental vibrations, extreme wind loads, or seismic activity.
Ergonomic Distance Operation: Specifically calibrated to be seamlessly operated using a standard insulated hook rod, allowing technicians to engage or disengage the switch smoothly from a safe ground or bucket distance.

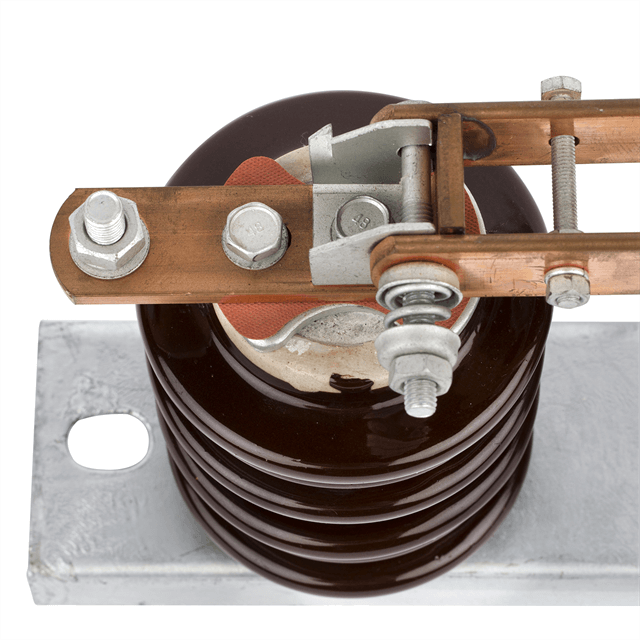

Optimized Contact Pressure: Heavy-duty internal spring mechanisms maintain consistent, even pressure on the conductive contacts, preventing localized overheating and ensuring stable current transmission.
At the heart of this disconnecting switch is its exceptional capacity to manage medium-voltage power flows safely and efficiently. The unit is strictly rated for a 12kV voltage and a continuous 630A current, making it a highly capable asset for demanding regional distribution networks.
Exceptional Fault Tolerance: With a short-time withstand current of 20kA and a peak withstand current of 50kA, the switch effortlessly endures sudden electrical surges and short-circuit events without sustaining structural damage.
Superior Dielectric Insulation: The robust lightning impulse withstand voltage of up to 85kV guarantees that the system remains heavily protected during severe weather events and unpredictable atmospheric electrical discharges.
Safety and ease of use are the foundational principles dictating the physical architecture of this isolator switch. The single-pole, single-phase structure is deliberately compact, reducing the installation footprint on utility poles while maintaining optimal phase-to-ground clearance.
Secure Hook Rod Actuation: The mechanical linkage is perfectly calibrated for manual operation, requiring minimal physical exertion while providing a crisp, definitive toggle action that leaves no doubt about the switch's status.
Fail-Safe Maintenance Protocol: The creation of a distinct physical break in the circuit ensures that line workers can visually verify the completely de-energized state before commencing critical repairs on adjacent transformers.
Environmental degradation is a primary concern for outdoor electrical infrastructure. This switch is fortified with advanced materials and specialized surface coatings specifically formulated to combat harsh outdoor elements year after year.
Extreme Temperature Resilience: Engineered to function flawlessly in freezing environments down to -30°C and sweltering ambient conditions up to +40°C, ensuring unwavering year-round reliability.
Anti-Pollution and UV Defense: The exterior insulators are highly resistant to ultraviolet radiation and heavy industrial pollution, preventing surface tracking and maintaining maximum dielectric strength over time.
Flexibility in deployment makes this disconnecting switch an invaluable component for diverse grid modernization and expansion projects. Its lightweight yet incredibly durable construction simplifies logistics and mounting procedures across various terrains.
Rural and Urban Grid Integration: Perfectly suited for upgrading rural distribution networks, pole-mounted substation configurations, and overhead line segmentation projects.
Cost-Effective Infrastructure: The straightforward installation process significantly reduces labor hours and heavy machinery requirements, directly lowering overall capital expenditure for utility grid operators.
Quality assurance is absolutely non-negotiable when dealing with high-voltage equipment. Every single unit undergoes a rigorous battery of factory tests to ensure absolute compliance with global safety and performance benchmarks.
IEC 62271-102 Conformity: Manufactured in strict adherence to international standard protocols, guaranteeing seamless interoperability and globally recognized safety profiles.
Exhaustive Factory Testing: Before dispatch, the switch is subjected to comprehensive power frequency withstand tests, lightning impulse evaluations, and mechanical cycling to definitively verify its 2000-operation lifespan.
Procuring critical electrical infrastructure requires a highly reliable partnership. We provide comprehensive support structures designed to eliminate procurement risks and ensure long-term operational success for large-scale buyers.
Customized Manufacturing Solutions: We offer flexible OEM and ODM services, including specialized anti-pollution configurations tailored specifically for heavy industrial zones or high-salinity coastal regions.
Dedicated Technical Assistance: From initial installation guidance to rapid-response troubleshooting, our expert engineering team is committed to maximizing the lifespan and operational efficiency of your electrical assets.
Selecting the right manufacturing partner for high-voltage isolation equipment is a critical decision that directly impacts the safety and efficiency of your entire electrical grid. Our production facilities combine decades of specialized engineering expertise with cutting-edge manufacturing technology to deliver components that consistently exceed industry expectations.
Uncompromising Material Selection: We source only the highest-grade conductive copper alloys and premium ceramic or silicone insulators, ensuring that our switches offer superior thermal management and structural strength.
Streamlined Global Logistics: Our robust supply chain network is optimized for the secure, damage-free, and timely delivery of sensitive electrical equipment, ensuring your project timelines are met without costly delays.
Comprehensive Warranty Protection: We stand firmly behind the durability of our products with solid warranty commitments, providing you with the peace of mind that your infrastructure investment is fully protected against manufacturing defects.
Continuous Engineering Innovation: Our dedicated research and development teams are constantly refining our product designs based on real-world field data, ensuring you receive the most advanced and reliable switching technology available on the market today.
Review these frequently asked questions to gain a deeper understanding of the technical specifications, installation requirements, and operational best practices for our outdoor high voltage disconnecting switch.
This isolator switch is primarily utilized to safely disconnect specific segments of a medium-voltage overhead line or substation from the main power supply. It creates a highly visible physical gap in the circuit, which is a mandatory safety requirement before maintenance personnel can begin repairs or routine inspections on transformers and transmission lines.
While the standard model is highly resilient, for areas with severe industrial pollution or high coastal salinity, we offer customized anti-pollution variants. These specialized models feature enhanced creepage distances and advanced hydrophobic coatings on the insulators to prevent surface tracking, flashovers, and degradation in highly contaminated environments.
No. As a standard disconnecting switch (isolator), it is engineered specifically for off-load operation. It must only be opened or closed when the circuit is completely de-energized or when the current is negligible. Attempting to interrupt an active load current can result in severe electrical arcing, catastrophic equipment damage, and extreme safety hazards for the operator.
To maximize the mechanical lifespan of the switch, we highly recommend implementing a routine visual and physical inspection schedule. This includes checking the primary contact points for signs of severe oxidation or wear, ensuring the self-locking mechanism engages smoothly, and applying approved conductive lubricants to the moving joints. Additionally, the insulating surfaces should be periodically cleaned of heavy dust or debris accumulation to maintain dielectric integrity.
The insulated hook rod is typically procured separately based on the specific height and clearance requirements of your unique installation site. To operate the switch, a qualified technician hooks the rod into the designated pulling ring on the switch mechanism and applies a firm, steady downward or upward motion to engage or disengage the contacts. This ensures the operator remains at a safe, standardized distance from all high-voltage components during the switching procedure.
